- Full Load Amps: 0.56
- Housing Material: Steel
- Blower Wheel Diameter: 4 1/2 in
- Wheel Diameter: 4 1/2 in
- Inlet Diameter: 4 3/4 in
- Phase: 1
Specifications
| Part Number | A251 |
| Brand | Fasco |
| Drive Type | Direct |
| Full Load Amps | 0.56 |
| Housing Material | Steel |
| Inlet Dia. | 4 3/4 in |
| Number of Speeds | 1 |
| Overall Height | 7 3/4 in |
| Overall Width | 7 1/4 in |
| Blower Wheel Diameter | 4 1/2 in |
| Outlet Height | 2 3/4 in |
| Outlet Width | 1 3/4 in |
| Lead Length | 48 in |
| Blower Wheel Width | 1 5/16 in |
| Overall Depth | 6 in |
| Wheel Diameter | 4 1/2 in |
| Inlet Diameter | 4 3/4 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | No |
| Blower Motor Type | Shaded Pole |
| Blower Voltage | 208/230V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| Replaces | Mfr. Model No. 7021-9136, MTR-136PK |
| Agency Compliance | CSA Compliant, UL Recognized |
| Motor Insulation | Class B |
| Housing Color | Natural |
| Wheel Type | Forward-Curved |
| Max. Inlet Temp. | 400 Degrees F |
| Motor Enclosure | Open |
| Bearing Type | Sleeve |
| Item | OEM Blower |
| RPM | 3000 |
| Max. Ambient Temp. | 104 Degrees F |
| Housing Finish | Metal |
| Mounting Position | All Position |
| Hz | 50/60 |
| Nameplate Voltage | 208-230V AC |
| Application | Furnaces |
| Maximum Fan Speed | 3,000 RPM |
| Replacement For Manufacturer Model Number | 7021-9136, MTR-136PK |
| Wheel Material | Steel |
| Standards | UL Listed |
| Compatible with Brand | Skymark |
| Maximum Motor Speed | 3,000 RPM |
| OEM Replacement | Yes |
| Outlet Shape | Rectangular |
| Airflow @ 0.000 in SP | 78 cfm |
| Maximum Inlet Air Temperature | 400 Degrees F |
| Motor Insulation Class | B |
| Maximum Static Pressure | 1 7/8 in wc |
| Electrical Connection | Wire Leads |
| Frequency | 60 Hz |
| Motor Type | Shaded Pole |
| Current | 0.56 A |
| Voltage | 208/230VAC |
Description

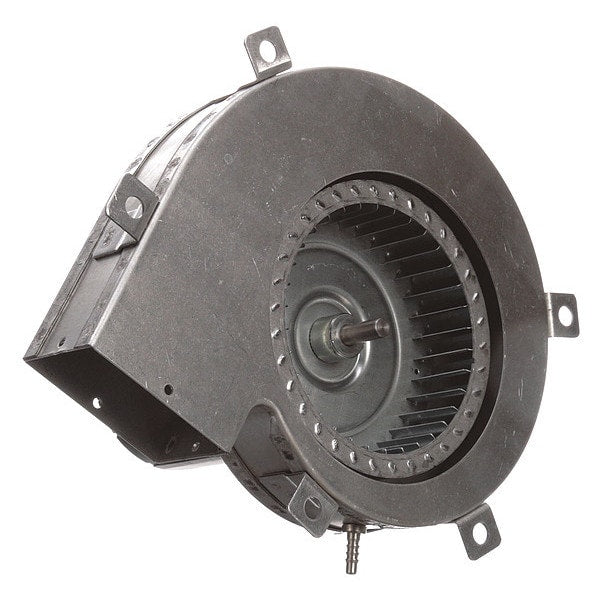

The Fasco A251 is a direct-drive OEM specialty blower with a shaded-pole motor. This 1-phase, 208/230V AC blower operates at 3000 RPM with a full load amp rating of 0.56, using a forward-curved wheel in a steel housing.
