- Full Load Amps: 0.85
- Housing Material: Plastic
- Blower Wheel Diameter: 4 3/4 in
- Inlet Diameter: 2 in
- Wheel Diameter: 4 5/8 in
- Outlet Diameter: 2 3/8 in
Specifications
| Part Number | A246 |
| Brand | Fasco |
| Drive Type | Direct |
| Full Load Amps | 0.85 |
| Housing Material | Plastic |
| Number of Speeds | 2 |
| Overall Height | 9 1/8 in |
| Overall Width | 7 3/4 in |
| Blower Wheel Diameter | 4 3/4 in |
| Blower Wheel Width | 1 11/16 in |
| Lead Length | 9 in |
| Overall Depth | 7 in |
| Inlet Diameter | 2 in |
| Wheel Diameter | 4 5/8 in |
| Outlet Diameter | 2 3/8 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Round |
| With Flange | No |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| Motor Insulation | Class B |
| Item | OEM Blower |
| Housing Color | Black |
| Max. Ambient Temp. | 104 Degrees F |
| Wheel Type | Forward-Curved |
| Hz | 60 |
| Mounting Position | Shaft Horizontal |
| Motor Enclosure | Open |
| Agency Compliance | CSA Compliant, UL Recognized |
| RPM | 3400/2400 |
| Max. Inlet Temp. | 180 Degrees F |
| Bearing Type | Ball |
| Replaces | Mfr. Model No. 70-24206-01, 7062-3925 |
| Wheel Material | Polypropylene |
| Nameplate Voltage | 115V AC |
| Standards | CSA Certified, UL Listed |
| Airflow @ 0.000 in SP | 99 cfm |
| Maximum Inlet Air Temperature | 180 Degrees F |
| Mounting Orientation | Horizontal |
| Maximum Motor Speed | 3,400 RPM |
| Electrical Connection | Wire Leads |
| Current | 0.85 A |
| OEM Replacement | Yes |
| Maximum Static Pressure | 3 7/8 in wc |
| Maximum Fan Speed | 3,400 RPM |
| Motor Insulation Class | B |
| Compatible with Brand | Rheem, RUUD |
| Replacement For Manufacturer Model Number | 70-24206-01, 7062-3925 |
| Motor Type | Permanent Split Capacitor |
| Outlet Shape | Round |
| Application | Furnaces |
| Frequency | 60 Hz |
| Voltage | 115VAC |
Description

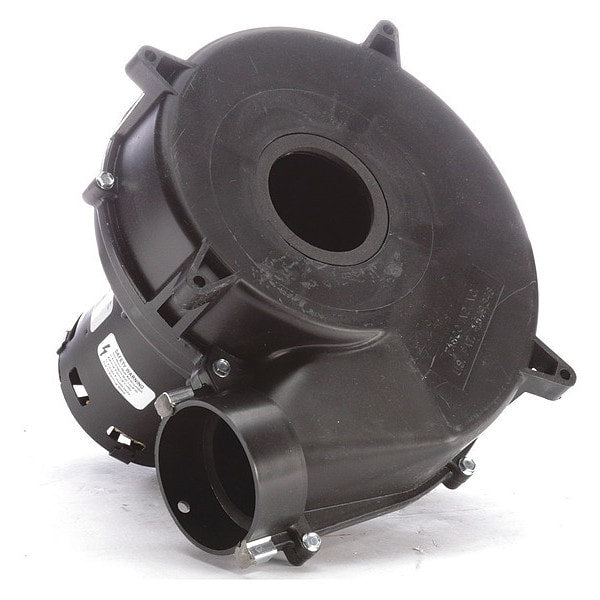

The Fasco A246 is an OEM specialty blower, a 2-speed permanent split capacitor (PSC) blower motor operating at 115V AC and 0.85 full load amps. This direct-drive, 1-phase blower functions as a draft inducer motor, moving air through a system.
