- Full Load Amps: 1.80
- Housing Material: Steel
- Blower Wheel Diameter: 4 1/2 in
- Wheel Diameter: 4 1/2 in
- Inlet Diameter: 7 1/2 in
- Outlet Diameter: 3 7/8 in
Specifications
| Part Number | A229 |
| Brand | Fasco |
| Drive Type | Direct |
| Full Load Amps | 1.80 |
| Housing Material | Steel |
| Number of Speeds | 1 |
| Overall Height | 8 5/8 in |
| Overall Width | 9 1/2 in |
| Blower Wheel Diameter | 4 1/2 in |
| Blower Wheel Width | 1 5/16 in |
| Outlet Dia. | 4 in |
| Overall Depth | 6 3/8 in |
| Wheel Diameter | 4 1/2 in |
| Inlet Diameter | 7 1/2 in |
| Outlet Diameter | 3 7/8 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Rectangular |
| With Flange | Yes |
| Blower Motor Type | Shaded Pole |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| RPM | 3000 |
| Motor Enclosure | Open |
| Hz | 60 |
| Housing Color | Natural |
| Bearing Type | Ball |
| Housing Finish | Metal |
| Max. Ambient Temp. | 104 Degrees F |
| Mounting Position | All Position |
| Wheel Type | Forward-Curved |
| Item | OEM Blower |
| Max. Inlet Temp. | 400 Degrees F |
| Agency Compliance | CSA Compliant, UL Recognized |
| Replaces | Mfr. Model No. 7058-0267, 7058-0267S, 17499 |
| Motor Insulation | Class B |
| Outlet Shape | Round |
| Electrical Connection | Male Terminals |
| Frequency | 60 Hz |
| Motor Type | Shaded Pole |
| Maximum Inlet Air Temperature | 400 Degrees F |
| Compatible with Brand | York |
| Maximum Motor Speed | 3,000 RPM |
| Current | 1.8 A |
| Motor Insulation Class | B |
| Replacement For Manufacturer Model Number | 17499, 7058-0267, 7058-0267S |
| OEM Replacement | Yes |
| Standards | CSA Certified, UL Listed |
| Application | Furnaces |
| Airflow @ 0.000 in SP | 108 cfm |
| Maximum Static Pressure | 1 7/8 in wc |
| Nameplate Voltage | 115V AC |
| Wheel Material | Steel |
| Maximum Fan Speed | 3,000 RPM |
| Voltage | 115VAC |
Description

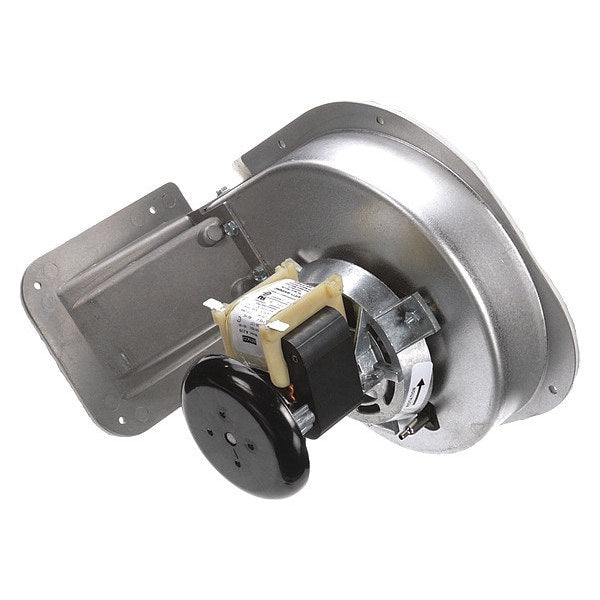

The Fasco A229 is a rectangular OEM specialty blower, functioning as a draft inducer motor. This 115V AC, 1-phase, shaded-pole blower operates at 3000 RPM with a 1.80 full load amp rating and features a steel housing.
