- Voltage: 115
- Construction Material: Plastic
- Wheel Diameter: 8 in
- Inlet Diameter: 2 3/4 in
- Outlet Diameter: 2 1/4 in
- Housing Material: Plastic
Specifications
| Part Number | A171 |
| Brand | Fasco |
| Inlet and Outlet Dia. | 1.0/2.0 |
| Voltage | 115 |
| Depth | 11 19/32 in |
| Construction Material | Plastic |
| Height | 10 11/16 in |
| Width | 5 41/64 in |
| Overall Depth | 11 1/2 in |
| Wheel Diameter | 8 in |
| Overall Height | 10 5/8 in |
| Inlet Diameter | 2 3/4 in |
| Overall Width | 5 5/8 in |
| Outlet Diameter | 2 1/4 in |
| Item | Draft Inducer |
| For Use With Mfr. Model Number | 1011412, 7062-4201, 7062-4274, 7062-4549, 7062-4705, 7062-4783 |
| Fits Brand | ICP |
| Replaces | Fasco 70624783, 70624705, 70624274, 70624201, 70624549, ICP 1010491, 1011096, 1011410, 1010527, ICP 1011412 |
| Agency Compliance | CSA Motor Only, UL |
| Application | Furnaces |
| CFM @ 0.000-In. SP | 100 |
| CFM @ 1.000-In. SP | 89 |
| CFM @ 0.700-In. SP | 92 |
| CFM @ 0.500-In. SP | 65 |
| CFM @ 1.40-In. SP | 83 |
| Current | 0.7 A |
| Standards | CSA Certified, UL Listed |
| Replacement For Manufacturer Model Number | 1010491, 1010527, 1011096, 1011410, 1011412, 70624201, 70624274, 70624549, 70624705, 70624783 |
| Housing Material | Plastic |
| OEM Replacement | Yes |
| Blower Type | Induced Draft Blower |
| For Appliance Type | Furnaces |
| Phase | 1 |
| Maximum Static Pressure | 3 7/8 in wc |
| Nameplate Voltage | 115V AC |
| Motor Type | Permanent Split Capacitor |
| Wheel Material | Polypropylene |
| Includes Motor | Yes |
| Outlet Shape | Round |
| For Use With | 1011412, 7062-4201, 7062-4274, 7062-4549, 7062-4705, 7062-4783, ICP |
| Maximum Motor Speed | 3,450 RPM |
| Maximum Inlet Air Temperature | 40 Degrees C |
| Airflow @ 0.000 in SP | 90 cfm |
| Electrical Connection | Wire Leads |
| Compatible with Brand | Intercity Products |
| Motor Insulation Class | B |
| Maximum Fan Speed | 3,400 RPM |
| Frequency | 60 Hz |
| Wheel Type | Backward-Curved |
Description

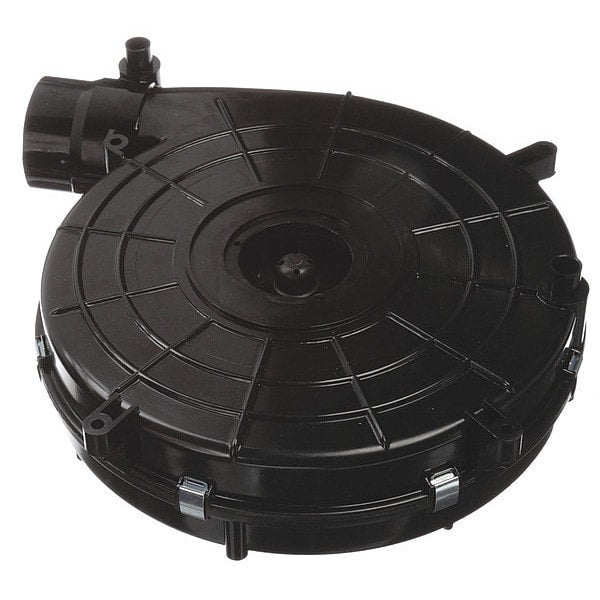

The Fasco A171 is a 115-volt draft inducer motor with a plastic housing, functioning as an induced draft blower to pull combustion gases through a furnace. This CSA-certified and UL-listed part is designed for use with furnace models 1011412, 7062-4201, 7062-4274, 7062-4549, 7062-4705, and 7062-4783.
