- Voltage: 115
- HP: 1/50 hp
- Construction Material: Steel
- Inlet Diameter: 4 5/8 in
- Wheel Diameter: 4 1/2 in
- Amps: 1.1A
Specifications
| Part Number | A090 |
| Brand | Fasco |
| Type | Replacement |
| Voltage | 115 |
| Depth | 5 7/8 in |
| HP | 1/50 hp |
| Construction Material | Steel |
| Height | 7 1/2 in |
| Vent Pipe Dia. | 3.3" |
| Width | 8 5/8 in |
| Inlet Diameter | 4 5/8 in |
| Outlet Width | 1 5/8 in |
| Overall Width | 8 5/8 in |
| Outlet Height | 2 5/8 in |
| Overall Depth | 5 7/8 in |
| Overall Height | 7 1/2 in |
| Wheel Diameter | 4 1/2 in |
| Item | Draft Inducer Blower |
| Amps | 1.1A |
| Includes | (1)22" Lead with Stripped ends, (1)31" Lead with Stripped ends |
| Remarks | Product Used as Direct OEM Replacement Only. Any Other use Constitutes a Misapplication, Which Voids the Warranty and May Create Unsafe Conditions |
| For Use With Mfr. Model Number | 70-21496-01 |
| Fits Brand | Rheem |
| Replaces | Alltemp (Rotom) FB-RFB090, Fasco 70215239, 70219921, Rheem 70-21496-01 |
| Agency Compliance | CSA, UL |
| Application | Furnaces |
| Watts | 90 W |
| Number of Speeds | 1 |
| RPM | 3000 |
| Bearings | Sleeve |
| Enclosure | Open |
| Class | B |
| Overload Protection | Thermal |
| CFM @ 1.40-In. SP | 54 |
| CFM @ 1.000-In. SP | 71 |
| CFM @ 0.700-In. SP | 80 |
| Motor Type | Shaded Pole |
| Current | 1.1 A |
| Wheel Type | Forward-Curved |
| Outlet Shape | Rectangular |
| Maximum Inlet Air Temperature | 40 Degrees C |
| Blower Type | Induced Draft Blower |
| Compatible with Brand | Rheem, RUUD |
| Standards | CSA Certified, UL Listed |
| Phase | 1 |
| Maximum Motor Speed | 3,000 RPM |
| Replacement For Manufacturer Model Number | 70-21496-01, 70215239, 70219921, FB-RFB090 |
| Airflow @ 0.000 in SP | 92 cfm |
| Maximum Static Pressure | 1 5/8 in wc |
| Wheel Material | Steel |
| For Appliance Type | Gas Furnaces |
| Maximum Motor Horsepower | 1/50 hp |
| OEM Replacement | Yes |
| Frequency | 50/60 Hz |
| For Fuel Type | Natural Gas |
| Electrical Connection | Wire Leads |
| Maximum Fan Speed | 3,400 RPM |
| Housing Material | Steel |
| Power Consumption | 90 W |
| For Use With | 70-21496-01, Rheem |
| Motor Insulation Class | B |
| Nameplate Voltage | 115V AC |
| Includes Motor | Yes |
Description

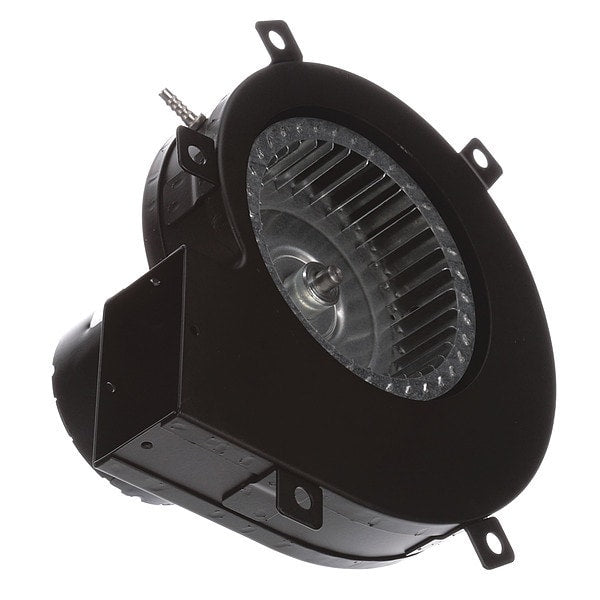

The Fasco A090 is a replacement draft inducer blower motor. This type of motor powers a blower that creates a draft to exhaust combustion gases from a heating system. It operates at 115 volts and 1.1 amps with a 1/50 hp rating, features steel construction, and includes two stripped leads (22" and 31"). This part is used with manufacturer model number 70-21496-01.
