- Full Load Amps: 1.7 A
- HP: 1/10
- Phase: Single
- Voltage Compatibility: 115V AC
- Hz: 60 Hz
- Nameplate RPM: 1,075
Specifications
| Part Number | 9709A |
| Brand | Century |
| Motor Enclosure Design | Open Air-Over |
| Motor Application | HVAC/R |
| Motor Design | Permanent Split Capacitor |
| Overall Length | 10 7/8 in |
| Shaft Dia. | 1/2 in |
| Bolt Circle Dia. | 4 5/8 in |
| Lead Length | 13 in |
| Body Dia. | 5 in |
| Manufacturers Warranty Length | 2 yr |
| Shaft Length | 6 in |
| Length Less Shaft | 4 13/16 in |
| Full Load Amps | 1.7 A |
| HP | 1/10 |
| Standards | CSA, UL |
| Phase | Single |
| Voltage Compatibility | 115V AC |
| Hz | 60 Hz |
| Weight | 9.13 lb |
| Motor Shaft Rotation | CW/CCW |
| No. of Speeds | 3 |
| Motor Service Factor | 1 |
| Capacitor Required | 2MDV4 |
| Nameplate RPM | 1,075 |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Shaft Design | Keyed |
| Includes | Resilient Mounting Rings |
| Item | Direct Drive Blower Motor |
| Voltage | 115V AC |
| Motor Bearings | Ball |
| Motor Mounting Position | All Angle |
| Frame | 42 |
| RPM Range | 1,001-1,100 |
| Max. Ambient Temp. | 104 Degrees F |
| Motor Frame Material | Steel |
| Ins. Class | B |
| Motor Thermal Protection | Auto |
| Motor Mounting Type | Ring |
Description

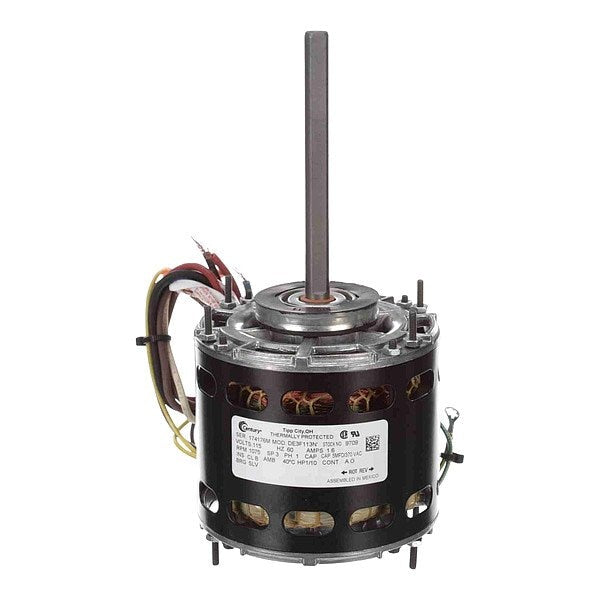

The Century 9709A is a 1/10 HP direct drive blower motor designed for HVAC/R applications. This open air-over motor operates at 115V AC, 60 Hz, single-phase, with a full load amp rating of 1.7 A. It is CSA and UL certified.
