- For Conductor Material: Aluminum, Copper
- Maximum Voltage: 600 V AC/DC
- For Load Copper Wire Size - Maximum: 2 AWG
- For Load Aluminum Wire Size - Minimum: 14 AWG
- For Line Aluminum Wire Size - Maximum: 2 AWG
- For Line Copper Wire Size - Maximum: 2 AWG
Specifications
| Part Number | 9080LBA361101 |
| Brand | Square D |
| CAD Drawing | 2D Drawing (.pdf) |
| Power Distribution Block Design | Open |
| For Conductor Material | Aluminum, Copper |
| Maximum Current - Copper Conductor | 115 A |
| Maximum Current - Aluminum Conductor | 90 A |
| Maximum Voltage | 600 V AC/DC |
| Length | 2.29 in |
| Width | 2.1 in |
| Depth | 1.53 in |
| For Load Copper Wire Size - Maximum | 2 AWG |
| Overall Width | 2.12 in |
| For Load Aluminum Wire Size - Minimum | 14 AWG |
| For Line Aluminum Wire Size - Maximum | 2 AWG |
| For Line Copper Wire Size - Maximum | 2 AWG |
| Overall Depth | 1.62 in |
| For Load Aluminum Wire Size - Maximum | 2 AWG |
| Overall Length | 2.29 in |
| For Line Copper Wire Size - Minimum | 14 AWG |
| For Line Aluminum Wire Size - Minimum | 14 AWG |
| For Load Copper Wire Size - Minimum | 14 AWG |
| Wire Strip Length | Line 0.5 in |
| Item | Miniature Power Distribution Block |
| Number of Poles | 3 |
| Line Connections/Pole | 1 |
| Load Connections/Pole | 1 |
| Line Side Connection Type | Lug |
| Load Side Connection Type | Lug |
| Terminal Material | Aluminum |
| Housing Material | Thermoplastic |
| Maximum Operating Temperature | 257 Degrees F |
| Mounting Type | Surface Mount |
| Standards | CE Marked, CSA File 70361 Class 6228-1, RoHS Compliant, UL File E60616 Guide XCFR2 |
| Number of Circuits | 3 |
| Minimum Operating Temperature | -40 Degrees F |
| Special Features | 18 Months Warranty, Surface Mount |
| Housing Color | Black |
| Short Circuit Current Rating | 65 kA |
| Features | Mercury Free |
| CAD Available | Yes |
Description

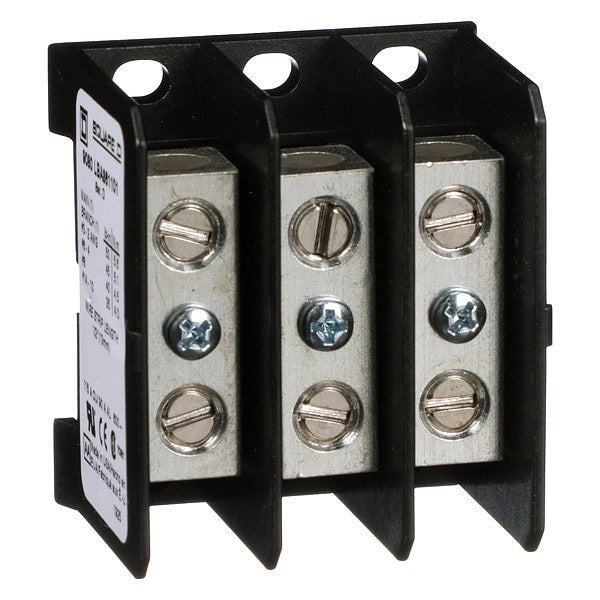

The Square D 9080LBA361101 is a miniature power distribution block. This type of component distributes power from a single input to multiple outputs. It is rated for 115 A and 600 V AC/DC, with aluminum and copper conductor compatibility, and features aluminum terminals with lug-style connections on both the line and load sides.
