- NEMA Rating: 4
- Tank Connection Size: 2-1/2 in MNPT
- Conduit Size: 2 3/4 in
- Stem Thread Size: 2 1/2 in MNPT
- Float Diameter: 2.5 in
- Max. Pressure: 50 PSI
Specifications
| Part Number | 9038CW32 |
| Brand | Schneider Electric |
| Switch Function | Close On Rise |
| Mounting | Side |
| Float Travel | 6 1/2 in |
| NEMA Rating | 4 |
| Tank Connection Size | 2-1/2 in MNPT |
| Overall Length | 18.5 in |
| Float Length | 7 in |
| Height | 5.94 in |
| Float Dia. | 2.5 in |
| Conduit Size | 2 3/4 in |
| Stem Length | 4 in |
| Width | 6.84 in |
| Stem Thread Size | 2 1/2 in MNPT |
| Manufacturer Warranty Length | 18 mo |
| Overall Height | 7.78 in |
| Overall Width | 7.78 in |
| Float Diameter | 2.5 in |
| Item | Alternator Closed Liquid Level Switch |
| Max. Pressure | 50 PSI |
| Operating Temp. Range | -22 Degrees to 200 Degrees F |
| Contact Form | DPST-4NC |
| Stem Material | Stainless Steel |
| Float Position | Left |
| Max. Voltage | 475 V |
| HP @ 1 Phase - 120V | 2 hp |
| Max. Current | 600 A |
| Float Material | Stainless Steel |
| Body Material | Steel |
| HP @ 3 Phase - 240V | 5 hp |
| Includes | Rod and Float |
| Electrical Connections | Screw Clamp |
| Standards | CE, CSA, CSA File LR25490, UL Listed, UL 50, UL 508, UL File E12158 |
| HP @ 1 Phase - 240V | 3 hp |
| Float Rod Angle | 90 Degrees |
| Enclosure Material | Cast Aluminium |
| Product Type | Alternator Closed Liquid Level Switch |
| Minimum Media Specific Gravity | 0.85 |
| NEMA Enclosure Rating | 4 |
| Horsepower @ Single Phase - 120V AC | 2 hp |
| Operating Temperature - Maximum | 220 Degrees F |
| Voltage Rating - Maximum | 575 V |
| Horsepower @ Single Phase - 240V AC | 3 hp |
| Mounting Style | Closed Tank Vertical |
| Proof Pressure | 50 psi |
| Series | 9038C |
| Electrical Connection | Screw Clamp |
| Operating Temperature - Minimum | -22 Degrees F |
| Horsepower @ Three Phase - 240V AC | 5 hp |
| Product Destination | for closed tank |
| Motor Power Kw | 1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)475 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC |
| Operating Position | vertical position only |
| Electrical Circuit Type | power circuit |
| Product Certifications | CSA file LR25490 || UL listed file E12158 |
| [Ui] Rated Insulation Voltage | 575 V UL 508 |
| Kit Composition | float switch || float || rod |
| Device Application | closed tank with bushing |
| Terminals Description Iso N°1 | line-load-load-line |
| Materials In Contact With Fluid | nitrile (Buna-N) or equivalent rubber || cast iron || stainlesss steel 304 || yellow brass || stainless steel 316 |
| Local Signalling | with external pointer |
| Factory Modification | without |
| Float Movement | 6.5...13 in adjustable |
| Device Mounting | screw-in bushing |
| Maximum Operating Rate | 60 cyc/mn |
| Ambient Air Temperature For Storage | -22-220°F |
| Terminal Block Type | 8 terminals |
| Contact Operation | contacts close on liquid rise |
| Controlled Fluid | fresh water specific gravity of 0.85 in or higher 0-220°F || sea water specific gravity of 0.85 in or higher 0-220°F || hydraulic oil specific gravity of 0.85 in or higher 0-220°F || corrosive fluid specific gravity of 0.85 in or higher 0-220°F |
| Nema Degree Of Protection | NEMA 4 UL 50 |
| Electrical Durability | 100 cycles 60 cyc/mn |
| Cable Entry Number | 2 conduit entries for 3/4"-14 NPT UL 508 |
| Product Or Component Type | mechanical alternator |
| Mechanical Durability | 300 cycles |
| Product Specific Application | mechanically alternating the operation of two pumps or motors |
| Device Short Name | 9038C |
| Short-Circuit Protection | 20 A cartridge fuse gG |
| Ambient Air Temperature For Operation | -22-220°F |
| Contacts Type And Composition | 4 NC, snap action, DPST-DB, Form YY |
Description

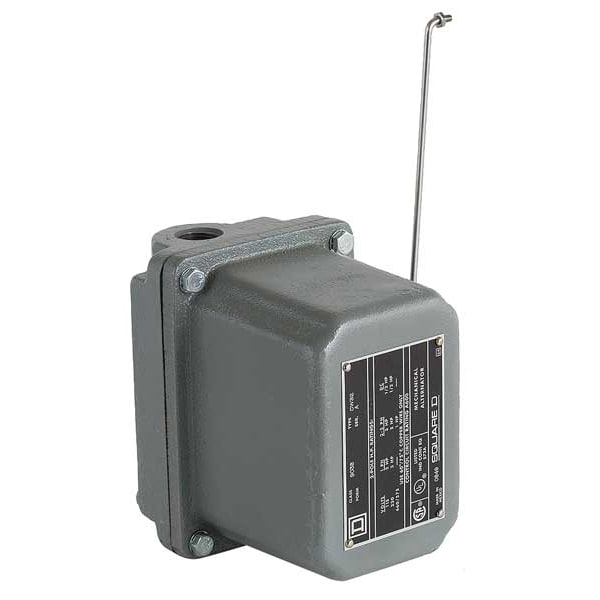

The Schneider Electric 9038CW32 is an Alternator Closed Liquid Level Switch. This type of switch alternates the operation of pumps or valves based on liquid level. It has a NEMA 4 rating, a maximum pressure of 50 PSI, and a maximum voltage of 475 V.
