- Max. Pressure: 50 psi
- HP @ 1 Phase - 120V: 2 hp
- HP @ 1 Phase - 240V: 3 hp
- Conduit Size: 8 1/2 in, 8 3/4 in
- Tank Connection Size: 2-1/2 in MNPT
- Float Diameter: 2.5 in
Specifications
| Part Number | 9038CG31 |
| Brand | Schneider Electric |
| Max. Pressure | 50 psi |
| Float Switch Contact Form | DPST |
| Float Length | 7 in |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 1 Phase - 240V | 3 hp |
| Height | 7.22 in |
| Conduit Size | 8 1/2 in, 8 3/4 in |
| Width | 10.16 in |
| Float Dia. | 2.5 in |
| Overall Length | 17.81 in |
| Stem Length | 4 in |
| Tank Connection Size | 2-1/2 in MNPT |
| Float Diameter | 2.5 in |
| Stem Thread Size | 2 1/2 in MNPT |
| Manufacturer Warranty Length | 18 mo |
| Overall Width | 6.84 in |
| Overall Height | 5.94 in |
| Item | Alternator Closed Liquid Level Switch |
| Operating Temp. Range | -22 Degrees to 220 Degrees F |
| Includes | Rod and Float |
| Contact Form | DPST-4NC |
| HP @ 3 Phase - 240V | 5 hp |
| Switch Function | Close On Rise |
| Float Travel | 6 1/2 in |
| Float Switch Float Material | Stainless Steel |
| Standards | CE, CSA, CSA File LR25490, UL Listed, UL 50, UL 508, UL File E12158 |
| Max. Voltage | 475 V |
| Float Position | Right |
| Body Material | Steel |
| Electrical Connections | Screw Clamp |
| Stem Material | Stainless Steel |
| Max. Current | 600 A |
| Mounting | Side |
| Float Rod Angle | 90 Degrees |
| NEMA Rating | 1 |
| Float Material | Stainless Steel |
| Series | 9038C |
| Product Type | Alternator Closed Liquid Level Switch |
| Horsepower @ Single Phase - 120V AC | 2 hp |
| Horsepower @ Three Phase - 240V AC | 5 hp |
| Voltage Rating - Maximum | 575 V |
| Operating Temperature - Minimum | -22 Degrees F |
| Electrical Connection | Screw Clamp |
| Horsepower @ Single Phase - 240V AC | 3 hp |
| Minimum Media Specific Gravity | 0.85 |
| Mounting Style | Closed Tank Vertical |
| Operating Temperature - Maximum | 220 Degrees F |
| NEMA Enclosure Rating | 1 |
| Proof Pressure | 50 psi |
Description

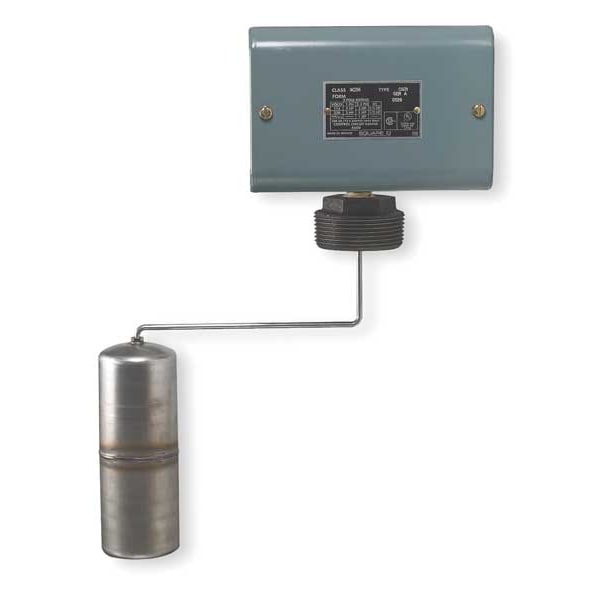

The Schneider Electric 9038CG31 is an alternator closed liquid level switch. This switch opens or closes a circuit based on liquid level changes, with a close-on-rise function for closed tank alternation. It is rated for a maximum pressure of 50 psi, an operating temperature range of -22°F to 220°F, and includes a rod and float. The switch has a 2-1/2 in MNPT tank connection and supports 2 hp at 120V, 3 hp at 240V (1-phase), and 5 hp at 240V (3-phase).
