- Voltage: 600VAC
- Amps: 10 A
- HP @ 1 Phase - 240V: 3 hp
- Conduit Size: 4 1/2 in, 4 3/4 in
- Body Material: Steel
- HP @ 1 Phase - 120V: 2 hp
Specifications
| Part Number | 9038AG1 |
| Brand | Schneider Electric |
| Voltage | 600VAC |
| Amps | 10 A |
| Height | 4.5 in |
| HP @ 1 Phase - 240V | 3 hp |
| Max. Current | 600 A |
| Conduit Size | 4 1/2 in, 4 3/4 in |
| Width | 4.69 in |
| Overall Length | 11.8 in |
| Overall Height | 4.5 in |
| Overall Width | 4.69 in |
| Manufacturer Warranty Length | 18 mo |
| Item | Alternator Open Liquid Level Switch |
| Switch Function | Close On Rise |
| Body Material | Steel |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 3 Phase - 240V | 5 hp |
| Electrical Connections | Screw Clamp |
| Operating Temp. Range | -22 Degrees to 220 Degrees F |
| NEMA Rating | 1 |
| Float Rod Angle | Vertical |
| VA Rating | 120V AC To 600V AC |
| Standards | CSA File No.LR25490, UL 508, UL E12158 |
| Mounting | Open Tank |
| Float Switch Contact Form | DPST |
| Contact Form | DPST-4NC |
| Max. Voltage | 600 |
| Float Travel | 1 1/4 in |
| Series | 9038A |
| Features | (4) Knock-Outs Conduit Entries for 1/2 in or 3/4 in |
| Product Type | Alternator Open Liquid Level Switch |
| Electrical Connection | Screw Clamp |
| Operating Temperature - Minimum | -22 Degrees F |
| Horsepower @ Single Phase - 240V AC | 3 hp |
| Voltage Rating - Maximum | 575 V AC |
| Horsepower @ Single Phase - 120V AC | 2 hp |
| NEMA Enclosure Rating | 1 |
| Current Rating | 600 A |
| Horsepower @ Three Phase - 240V AC | 5 hp |
| Operating Temperature - Maximum | 220 Degrees F |
| Minimum Media Specific Gravity | 0.85 |
| Mounting Style | Open Tank Vertical |
Description

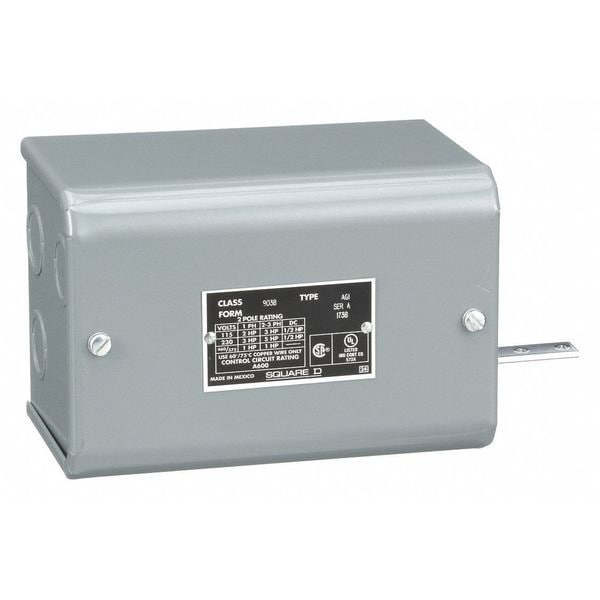

The Schneider Electric 9038AG1 is a DPST alternator open liquid level switch that closes on rise. This switch controls liquid levels by opening or closing a circuit as the level changes. It is rated for 600VAC and 10 A, with horsepower ratings of 3 hp at 240V single-phase, 2 hp at 120V single-phase, and 5 hp at 240V three-phase, and features a steel body with screw clamp electrical connections.
