- Max. Pressure: 50 psi
- Stem Material: Stainless Steel
- Tank Connection Size: 2-1/2 in MNPT
- Conduit Size: 2 3/4 in
- Stem Thread Size: 2 1/2 in MNPT
- Float Diameter: 2.58 in
Specifications
| Part Number | 9037HW30 |
| Brand | Schneider Electric |
| Max. Pressure | 50 psi |
| Mounting | Side |
| Electrical Connections | Screw Clamp |
| Stem Material | Stainless Steel |
| Height | 6.22 in |
| Width | 3.63 in |
| Float Length | 7.13 in |
| Tank Connection Size | 2-1/2 in MNPT |
| Conduit Size | 2 3/4 in |
| Stem Length | 4.37 in |
| Float Dia. | 2.58 in |
| Overall Length | 16.06 in |
| Stem Thread Size | 2 1/2 in MNPT |
| Manufacturer Warranty Length | 18 mo |
| Overall Height | 5.98 in |
| Overall Width | 2.88 in |
| Float Diameter | 2.58 in |
| Item | Liquid Level Switch |
| Switch Function | Close On Rise |
| Float Travel | 4 1/2 in |
| HP @ 1 Phase - 240V | 3 hp |
| Float Position | Left |
| HP @ 3 Phase - 240V | 5 hp |
| HP @ 1 Phase - 120V | 2 hp |
| Max. Voltage | 475 V |
| Float Switch Contact Form | DPST |
| Float Switch Float Material | Stainless Steel |
| Max. Current | 600 A |
| Float Material | Stainless Steel |
| Body Material | Aluminum |
| Contact Form | DPST-2NC |
| Includes | Rod and Float |
| Operating Temp. Range | -22 Degrees to 220 Degrees F |
| Float Rod Angle | 90 Degrees |
| NEMA Rating | 4 |
| Standards | CE, CSA, CSA File LR25490, UL Listed, UL 50, UL 508, UL File E12158 |
| Series | 9037H |
| Horsepower @ Single Phase - 240V AC | 3 hp |
| Electrical Connection | Screw Clamp |
| NEMA Enclosure Rating | 4 |
| Operating Temperature - Minimum | -22 Degrees F |
| Horsepower @ Three Phase - 240V AC | 5 hp |
| Horsepower @ Single Phase - 120V AC | 2 hp |
| Minimum Media Specific Gravity | 0.85 |
| Mounting Style | Closed Tank Vertical |
| Proof Pressure | 50 psi |
| Operating Temperature - Maximum | 220 Degrees F |
| Voltage Rating - Maximum | 575 V |
Description

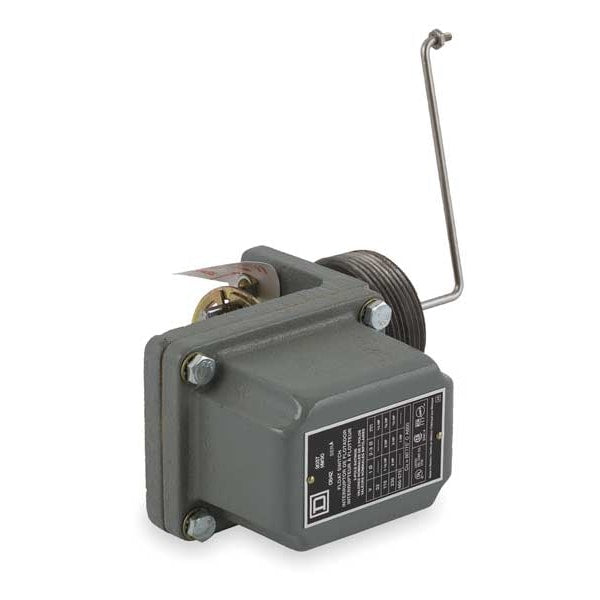

The Schneider Electric 9037HW30 is a DPST liquid level switch designed to close on a rise in liquid level. This float switch operates with a maximum pressure of 50 psi and features a stainless steel stem with a 2-1/2 in MNPT tank connection, using screw clamp electrical connections. It is rated at 3 hp at 240V single-phase, 5 hp at 240V three-phase, and 2 hp at 120V single-phase, with a NEMA IV enclosure.
