- Voltage: 575VAC
- Amps: 10
- Tank Connection Size: 5-1/8 in
- Conduit Size: 1/2 in
- Stem Thread Size: 5 1/8 in
- Operating Temp. Range: -22 Degrees to 220 Degrees F
Specifications
| Part Number | 9037EG9 |
| Brand | Schneider Electric |
| Voltage | 575VAC |
| Amps | 10 |
| Tank Connection Size | 5-1/8 in |
| Float Switch Contact Form | DPST |
| Height | 5.56 in |
| Overall Length | 3.86 in |
| Conduit Size | 1/2 in |
| Width | 5.75 in |
| Overall Height | 5.56 in |
| Overall Width | 5.75 in |
| Manufacturer Warranty Length | 18 mo |
| Stem Thread Size | 5 1/8 in |
| Item | Liquid Level Switch |
| Operating Temp. Range | -22 Degrees to 220 Degrees F |
| Switch Function | Close On Rise |
| Standards | CE, CSA, CSA File LR25490, UL Listed, UL 50, UL 508, UL File E12158 |
| Contact Form | DPST-2NC |
| Float Position | Below |
| HP @ 1 Phase - 240V | 3 hp |
| Mounting | Closed Tank |
| NEMA Rating | 1 |
| Float Rod Angle | Horizontal |
| Max. Current | 600 A |
| HP @ 3 Phase - 240V | 5 hp |
| Float Travel | 2 1/16 in |
| Electrical Connections | Screw Clamp |
| HP @ 1 Phase - 120V | 2 hp |
| Max. Voltage | 575 V |
| Body Material | Brass |
| Series | 9037E |
| Electrical Connection | Screw Clamp |
| Current Rating - Maximum | 600 A |
| NEMA Enclosure Rating | 1 |
| Horsepower @ Single Phase - 240V AC | 3 hp |
| Minimum Media Specific Gravity | 0.85 |
| Horsepower @ Three Phase - 240V AC | 5 hp |
| Operating Temperature - Minimum | -22 Degrees F |
| Voltage Rating - Maximum | 575 V |
| Mounting Style | Closed Tank Vertical |
| Operating Temperature - Maximum | 220 Degrees F |
| Horsepower @ Single Phase - 120V AC | 2 hp |
Description

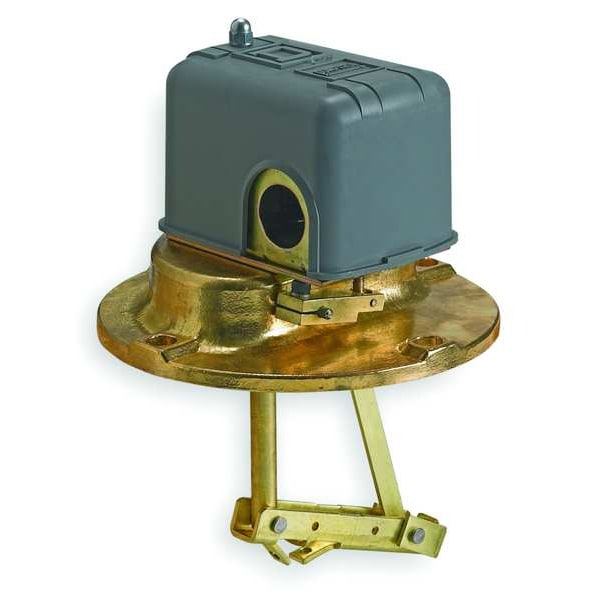

The Schneider Electric 9037EG9 is a DPST liquid level switch (float switch) that closes on rise. This switch monitors liquid levels and actuates when the level reaches a set point. It is rated for 575VAC at 10 amps, with an operating temperature range of -22 to 220 degrees F, and carries CE, CSA, and UL certifications.
