- NEMA Rating: 1
- Vacuum Sensor Size: 25 inHg
- Ambient Temp. Range: -10 Degrees to 185 Degrees F
- Media Temp. Range: -14 Degrees to 250 Degrees F
- NEMA Enclosure Rating: 1
- Operating Temperature - Maximum: 185 Degrees F
Specifications
| Part Number | 9016GVG1J10 |
| Brand | Schneider Electric |
| Contact Form | DPST |
| Differential | 5 to 10 in Hg |
| NEMA Rating | 1 |
| Port Type | 1-Port 1/4-18 in FNPS |
| Range | 0 to 25 in Hg |
| Overall Width | 4.58 in |
| Overall Height | 7.13 in |
| Overall Depth | 4.37 in |
| Manufacturer Warranty Length | 18 mo |
| Width | 4.58 in |
| Depth | 4.37 in |
| Height | 7.13 in |
| Vacuum Sensor Size | 25 inHg |
| Item | Vacuum Switch |
| Series | 9016GVG |
| Action | Standard |
| Ambient Temp. Range | -10 Degrees to 185 Degrees F |
| Media Temp. Range | -14 Degrees to 250 Degrees F |
| Electrical Connection | screw-clamp terminals AWG 22...AWG 12 |
| Features | (2) Thresholds, Adjustable Scale, Electromechanical |
| Standards | UL 508 |
| NEMA Enclosure Rating | 1 |
| Operating Temperature - Maximum | 185 Degrees F |
| Number of Pressure Connection Ports | 1 |
| Operating Temperature - Minimum | -9 Degrees F |
| Pressure - Maximum | 100 psi |
| Media Temperature - Maximum | 250 Degrees F |
| Pressure Connection Type | 1/2" NPT |
| Media Temperature - Minimum | -40 Degrees F |
| Differential Pressure - Maximum | 4.91 psi |
| Differential Pressure - Minimum | 2.46 psi |
| Pressure Actuator | diaphragm nitrile (Buna-N) |
| Nema Degree Of Protection | NEMA 1 UL 698 |
| Motor Power Kw | 1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.75 kW 5 hp)230 V AC, 3 phase || 3.7 kW 5 hp)460 V AC, 1 phase || 3.7 kW 5 hp)460 V AC, 3 phase || 3.7 kW 5 hp)575 V AC, 1 phase || 3.7 kW 5 hp)575 V AC, 3 phase || 0.75 kW 1 hp)115 V DC, 3 phase || 0.75 kW 1 hp)230 V DC |
| Ambient Air Temperature For Storage | 10-185°F |
| Maximum Operating Rate | 100 cyc/mn |
| Short-Circuit Protection | 20 A cartridge fuse gG |
| Cable Entry Number | 3 knock-outs for 1/2" NPT conduit |
| Enclosure Material | stamped metal |
| Approx Adjustable Differential At Mid Range | 5-10 inHg |
| Product Or Component Type | electromechanical vacuum switch |
| Ambient Air Temperature For Operation | 10-185°F |
| Cover Material | polypropylene, noryl thermoplastic resin or equivalent |
| Setting | internal |
| Device Application | power circuit application |
| Mechanical Durability | 300 cycles |
| Value Of Setting | 16.5...25 inHg |
| Local Display | without |
| Vacuum Switch Type Of Operation | regulation between two thresholds |
| Contacts Type And Composition | 2 NC, DPST-DB, Form YY, snap action, silver cadmium contacts |
| Materials In Contact With Fluid | nitrile (Buna-N) || zinc plated steel || 3M Scotch-Grip 847 rubber and gasket adhesive |
| Electrical Circuit Type | power circuit |
| Repeat Accuracy | 0.025 |
| Controlled Fluid | air -40-250°F) || water -40-250°F) || hydraulic oil -40-250°F) || gas -40-250°F) |
| Cut-In Range | 0-20 inHg |
| Maximum Pressure | 100 psi |
| Terminal Block Type | 8 screw terminals |
| Device Short Name | 9016GVG |
| Operating Position | any position |
| Product Certifications | CSA file LR25490 || UL listed file E12158 CCN NKPZ |
| Cut Out Range | 5-25 inHg |
| Fluid Connection Type | 0.25 inch 18 NPSF UL 508 |
| Scale Type | adjustable |
Description

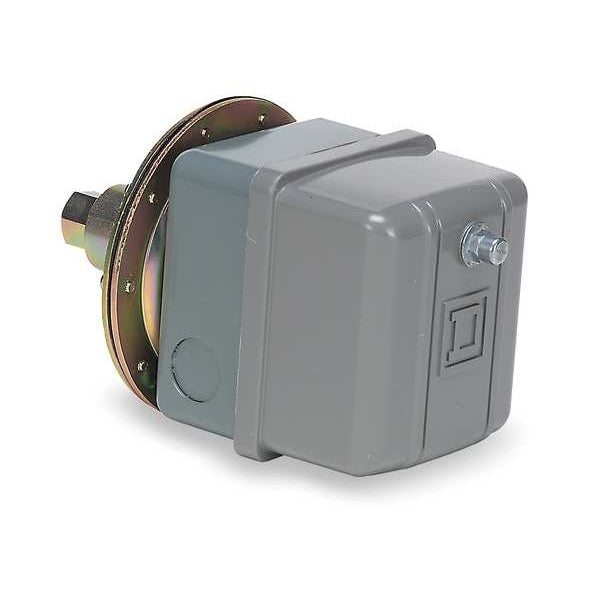

The Schneider Electric 9016GVG1J10 is a 9016GVG Series Vacuum Switch. This vacuum switch monitors pressure and opens or closes an electrical circuit at a set vacuum level, with a range of 0 to 25 inHg and a DPST contact configuration. It features a 1-Port 1/4-18 in FNPS connection and a NEMA 1 rating.
