- Number of Pressure Connection Ports: 1
- Pressure Connection Type: 3/8" FNPS
- Housing Material: Polypropylene
- Pressure Switch Factory On/Off Setting: 145/175 psi
- Pressure Switch Range: 32 to 250 psi
- Temp. Range: -22 Degrees to 257 Degrees F
Specifications
| Part Number | 9013GHG6J63 |
| Brand | Schneider Electric |
| CAD Drawing | 2D Drawing (.pdf) |
| Action | Standard |
| Contact Form | DPST |
| Number of Pressure Connection Ports | 1 |
| Pressure Connection Type | 3/8" FNPS |
| Range | 32 to 250 psi |
| Manufacturer Warranty Length | 18 mo |
| Item | Pressure Switch |
| Housing Material | Polypropylene |
| Factory On Setting | 145 psi |
| Factory Off Setting | 175 psi |
| Standards | ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508 |
| Special Features | Nitrile (Buna-N) Diaphragm |
| Pressure Switch Factory On/Off Setting | 145/175 psi |
| Pressure Switch Range | 32 to 250 psi |
| Temp. Range | -22 Degrees to 257 Degrees F |
| Pressure Switch Differential | 24 to 45 psi |
| AC Contact Rating | 10A @ 575V |
| Pressure Switch Electrical Contact Form | DPST |
| Pressure Switch Application | Air Compressor and Water Pump |
| Pressure Switch Port Type | (1) Port, 3/8 in FNPS |
| Series | 9013GH |
| Pressure Switch Unloader | No |
| Manual Switch Action | None |
| IP Rating | IP20 (IEC 60529) |
| Phase | Single/Three |
| Electrical Connection | Screw-Clamp Terminals |
| Burst Pressure | 300 psi |
| Material | Polypropylene Cover; Noryl Thermoplastic Resin Cover |
| HP | 3 HP @ 230V |
| Product Type | Water and Air Pressure Switch |
| Horsepower @ Single Phase - 240V AC | 3 hp |
| Horsepower @ Three Phase - 240V AC | 5 hp |
| Actuator Style | Diaphragm |
| Pressure - Maximum | 250 psi |
| Pressure - Minimum | 32 psi |
| Differential Pressure - Maximum | 175 psi |
| Media Temperature - Minimum | -33 Degrees F |
| Horsepower @ Three Phase - 480V AC | 5 hp |
| Differential Pressure - Minimum | 145 psi |
| Media Temperature - Maximum | 257 Degrees F |
| Switch Function Configuration | None |
| Horsepower @ Single Phase - 120V AC | 2 hp |
| CAD Available | Yes |
Description

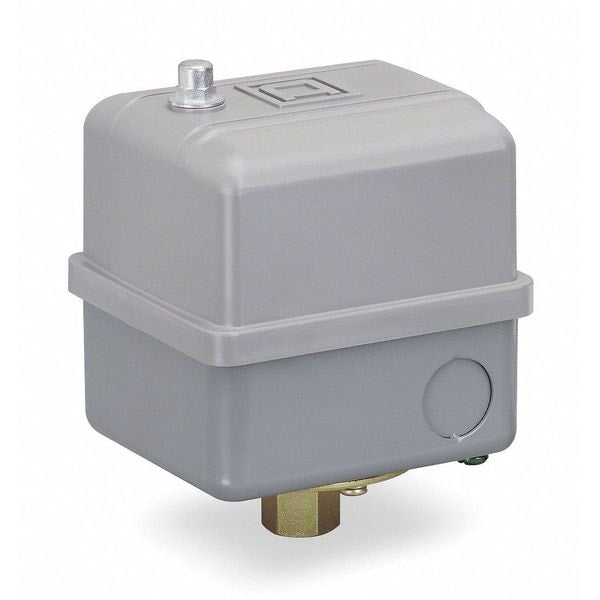

The Schneider Electric 9013GHG6J63 is a standard pressure switch with a DPST configuration. This type of switch monitors fluid pressure and opens or closes an electrical circuit when the pressure reaches its factory set point of 145 psi on and 175 psi off, within an adjustable range of 32 to 250 psi. It features a single 3/8" FNPS pressure connection port and a polypropylene housing, and it complies with ANSI/NSF Standard 61, CSA, FDA 21CFR.2600, NEC Article 430-84, and UL 508.
