- Number of Pressure Connection Ports: 1
- Pressure Connection Type: 1/4" FNPS
- Housing Material: Polypropylene
- Pressure Switch Application: Air Compressor and Water Pump
- Pressure Switch Differential: 20 to 40 psi
- Pressure Switch Range: 40 to 200 psi
Specifications
| Part Number | 9013GHG2J30 |
| Brand | Schneider Electric |
| CAD Drawing | 2D Drawing (.pdf) |
| Action | Standard |
| Contact Form | DPST |
| Number of Pressure Connection Ports | 1 |
| Pressure Connection Type | 1/4" FNPS |
| Range | 40 to 200 psi |
| Manufacturer Warranty Length | 18 mo |
| Item | Pressure Switch |
| Housing Material | Polypropylene |
| Factory On Setting | 80 psi |
| Factory Off Setting | 100 psi |
| Standards | ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508 |
| Pressure Switch Application | Air Compressor and Water Pump |
| Pressure Switch Differential | 20 to 40 psi |
| AC Contact Rating | 10A @ 575V |
| Series | 9013GH |
| Pressure Switch Range | 40 to 200 psi |
| Manual Switch Action | None |
| Pressure Switch Unloader | No |
| Pressure Switch Electrical Contact Form | DPST |
| Temp. Range | -22 Degrees to 257 Degrees F |
| Special Features | Nitrile (Buna-N) Diaphragm |
| Pressure Switch Factory On/Off Setting | 80/100 psi |
| Pressure Switch Port Type | (1) Port, 1/4 in FNPS |
| Phase | Single/Three |
| Electrical Connection | Screw-Clamp Terminals |
| Burst Pressure | 300 psi |
| IP Rating | IP20 (IEC 60529) |
| Material | Polypropylene Cover; Noryl Thermoplastic Resin Cover |
| HP | 3 HP @ 230V |
| Product Type | Water and Air Pressure Switch |
| Pressure - Maximum | 200 psi |
| Actuator Style | Diaphragm |
| Pressure - Minimum | 40 psi |
| Horsepower @ Single Phase - 240V AC | 3 hp |
| Horsepower @ Three Phase - 480V AC | 5 hp |
| Differential Pressure - Minimum | 80 psi |
| Horsepower @ Single Phase - 120V AC | 2 hp |
| Media Temperature - Maximum | 257 Degrees F |
| Horsepower @ Three Phase - 240V AC | 5 hp |
| Switch Function Configuration | None |
| Media Temperature - Minimum | -33 Degrees F |
| Differential Pressure - Maximum | 100 psi |
| CAD Available | Yes |
Description

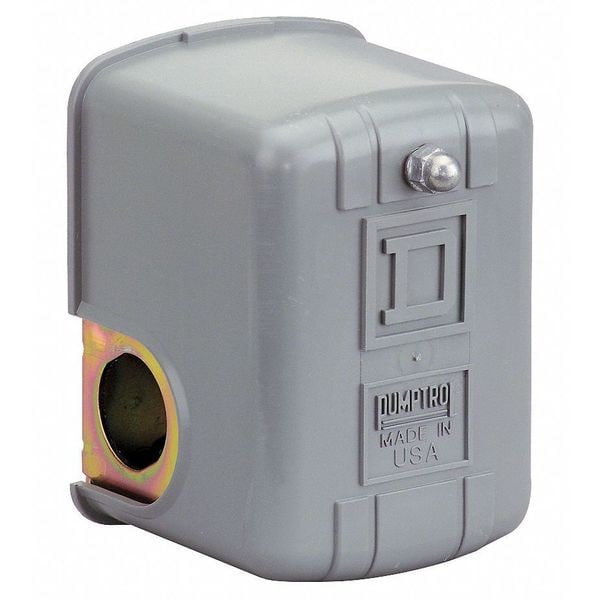

The Schneider Electric 9013GHG2J30 is a standard DPST pressure switch with a polypropylene housing. This type of switch opens or closes an electrical circuit in response to a change in system pressure. It is used for air compressor and water pump applications, with a pressure range of 40 to 200 psi and a differential of 20 to 40 psi. The switch is CSA Certified and UL 508 listed, with an AC contact rating of 10A at 575V.
