- Number of Pressure Connection Ports: 1
- Pressure Connection Type: 1/4" FNPS
- Housing Material: Polypropylene
- Pressure Switch Differential: 15 to 30 psi
- Temp. Range: -22 Degrees to 257 Degrees F
- Pressure Switch Port Type: (1) Port, 1/4 in FNPS
Specifications
| Part Number | 9013FSG2J24M4 |
| Brand | Schneider Electric |
| CAD Drawing | 2D Drawing (.pdf) |
| Action | Standard |
| Contact Form | DPST |
| Number of Pressure Connection Ports | 1 |
| Pressure Connection Type | 1/4" FNPS |
| Range | 5 to 65 psi |
| Manufacturer Warranty Length | 18 mo |
| Item | Pressure Switch |
| Housing Material | Polypropylene |
| Factory On Setting | 40 psi |
| Factory Off Setting | 60 psi |
| Standards | ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508 |
| Pressure Switch Differential | 15 to 30 psi |
| Temp. Range | -22 Degrees to 257 Degrees F |
| Pressure Switch Port Type | (1) Port, 1/4 in FNPS |
| Pressure Switch Unloader | No |
| Pressure Switch Factory On/Off Setting | 40/60 psi |
| Pressure Switch Range | 5 to 65 psi |
| Series | 9013FS |
| Pressure Switch Application | Water Pump |
| Pressure Switch Electrical Contact Form | DPST |
| AC Contact Rating | 10A @ 575V |
| Manual Switch Action | Auto/Off/Start |
| Special Features | Low Pressure Cut-Off |
| Burst Pressure | 220 psi |
| IP Rating | IP20 (IEC 60529) |
| Electrical Connection | Screw-Clamp Terminals |
| Phase | Single/Three |
| HP | 2 HP @ 23 HP @ 230V0V |
| Material | Polypropylene Cover; Noryl Thermoplastic Resin Cover |
| Product Type | Water Pump Switch |
| Media Temperature - Maximum | 257 Degrees F |
| Actuator Style | Diaphragm |
| Horsepower @ Single Phase - 120V AC | 1 1/2 hp |
| Switch Function Configuration | Auto/Start/Off |
| Pressure - Maximum | 65 psi |
| Horsepower @ Single Phase - 240V AC | 2 hp |
| Media Temperature - Minimum | -33 Degrees F |
| Horsepower @ Three Phase - 240V AC | 3 hp |
| Differential Pressure - Minimum | 40 psi |
| Pressure - Minimum | 5 psi |
| Differential Pressure - Maximum | 60 psi |
| Horsepower @ Three Phase - 480V AC | 1 hp |
| CAD Available | Yes |
Description

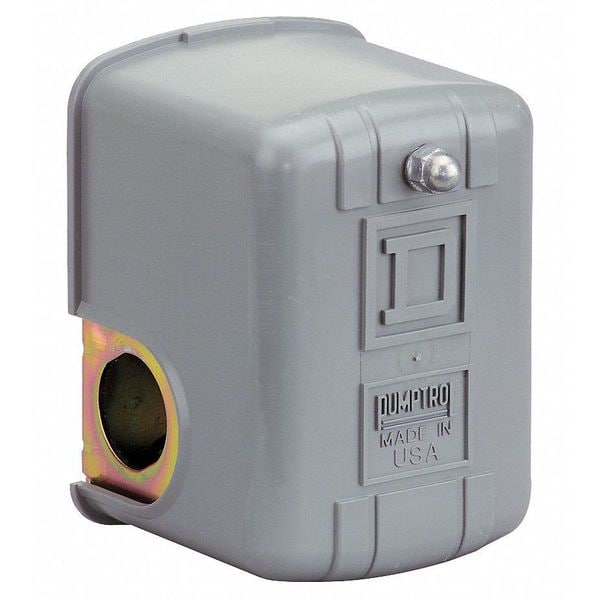

The Schneider Electric 9013FSG2J24M4 is a pressure switch with a polypropylene housing. This type of switch monitors fluid pressure and opens or closes an electrical circuit at a set point. It features a single 1/4" FNPS pressure connection port, a 5 to 65 psi range, and a 15 to 30 psi differential, and it is CSA Certified and UL 508 listed.
