- Number of Pressure Connection Ports: 1
- Pressure Connection Type: 1/4" FNPS
- Housing Material: Polypropylene
- Pressure Switch Range: 4 to 45 psi
- Pressure Switch Unloader: No
- Pressure Switch Electrical Contact Form: DPST
Specifications
| Part Number | 9013FRG22J23 |
| Brand | Schneider Electric |
| Action | Reverse |
| Contact Form | DPST |
| Number of Pressure Connection Ports | 1 |
| Pressure Connection Type | 1/4" FNPS |
| Range | 4 to 45 psi |
| Manufacturer Warranty Length | 18 mo |
| Item | Pressure Switch |
| Housing Material | Polypropylene |
| Factory On Setting | 10 psi |
| Factory Off Setting | 5 psi |
| Standards | ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508 |
| AC Contact Rating | 10A @ 230V |
| Pressure Switch Range | 4 to 45 psi |
| Pressure Switch Unloader | No |
| Manual Switch Action | None |
| Pressure Switch Electrical Contact Form | DPST |
| Pressure Switch Port Type | (1) Port, 1/4 in FNPS |
| Pressure Switch Differential | 6 to 20 psi |
| Pressure Switch Factory On/Off Setting | 40/20 psi |
| Series | 9013FR |
| Pressure Switch Application | Water Pump |
| Temp. Range | -22 Degrees to 257 Degrees F |
| Special Features | Mercury Free; Green Premium product |
| IP Rating | IP20 (IEC 60529) |
| Phase | Single/Three |
| Electrical Connection | Screw-Clamp Terminals |
| Burst Pressure | 220 psi |
| Material | Polypropylene Cover; Noryl Thermoplastic Resin Cover |
| HP | 1 HP @ 2 HP @ 23 HP @ 230V0V3 HP @ 230V0V |
| Product Type | Water Pump Switch |
| Actuator Style | Diaphragm |
| Media Temperature - Minimum | -33 Degrees F |
| Pressure - Minimum | 10 psi |
| Differential Pressure - Minimum | 6 psi |
| Switch Function Configuration | None |
| Differential Pressure - Maximum | 20 psi |
| Horsepower @ Single Phase - 240V AC | 1 hp |
| Horsepower @ Three Phase - 240V AC | 1 hp |
| Pressure - Maximum | 45 psi |
| Horsepower @ Single Phase - 120V AC | 1 hp |
| Media Temperature - Maximum | 257 Degrees F |
Description

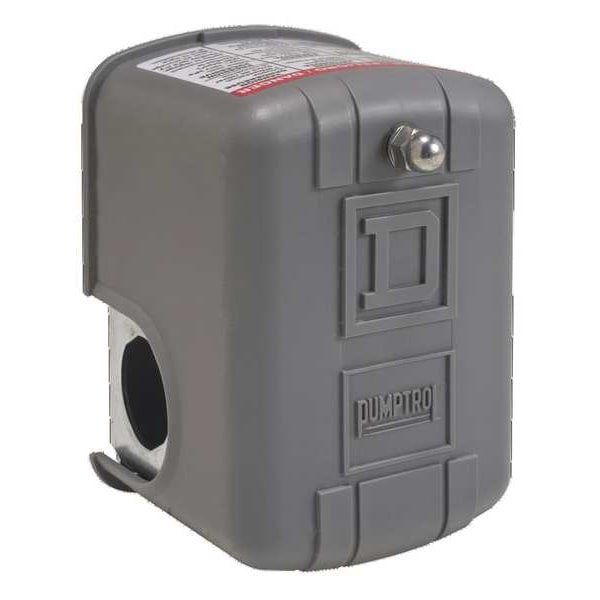

The Schneider Electric 9013FRG22J23 is a pressure switch with a polypropylene housing. This type of switch opens or closes an electrical circuit in response to a change in system pressure, featuring a 4 to 45 psi range and a DPST contact configuration rated at 10A @ 230V. It is certified to ANSI/NSF Standard 61, CSA, FDA 21CFR.2600, NEC Article 430-84, and UL 508.
