- Number of Pressure Connection Ports: 1
- Pressure Connection Type: 1/4-18" FNPT
- Housing Material: Plastic
- Ambient Temp. Range: -10 Degrees to 185 Degrees F
- Pressure Switch Electrical Contact Form: SPDT
- Temp. Range: -10 to 185 °F
Specifications
| Part Number | 9012GNG5 |
| Brand | Schneider Electric |
| CAD Drawing | 2D Drawing (.pdf) |
| Action | Standard |
| Contact Form | SPDT |
| Number of Pressure Connection Ports | 1 |
| Pressure Connection Type | 1/4-18" FNPT |
| Range | 3 to 150 psi |
| Manufacturer Warranty Length | 18 mo |
| Item | Pressure Switch |
| Housing Material | Plastic |
| Factory On Setting | 3 psi |
| Factory Off Setting | 75 psi |
| Standards | CE, CSA C22.2, RoHS, UL 508 |
| DC Contact Rating | 0.11A @ 250V, 0.22A @ 125V |
| Actuation Type | Diaphragm |
| AC Contact Rating | 10A @ 480V |
| Ambient Temp. Range | -10 Degrees to 185 Degrees F |
| Series | 9012G |
| IP Rating | 54 |
| Pressure Switch Electrical Contact Form | SPDT |
| Temp. Range | -10 to 185 °F |
| Pressure Switch Differential | 4.2 to 13.2 psi |
| Pressure Switch Port Type | 1-Port 1/4-18 in FNPT |
| Pressure Switch Factory On/Off Setting | 75 psi |
| Pressure Switch Range | 3 to 150 psi |
| Special Features | Mercury Free; Green Premium product |
| Electrical Connection | Screw-Clamp Terminals |
| Max. Pressure | 475 psi |
| Material | Thermoplastic |
| Proof Pressure | 475 psi |
| Differential Pressure - Minimum | 4.2 psi |
| Media Temperature - Minimum | -40 Degrees F |
| Differential Pressure - Maximum | 22 psi |
| Pressure - Maximum | 150 psi |
| Pressure - Minimum | 3 psi |
| Deadband Adjustability | Adjustable |
| Media Temperature - Maximum | 250 Degrees F |
| Products By Industry | Electrical |
| CAD Available | Yes |
Description

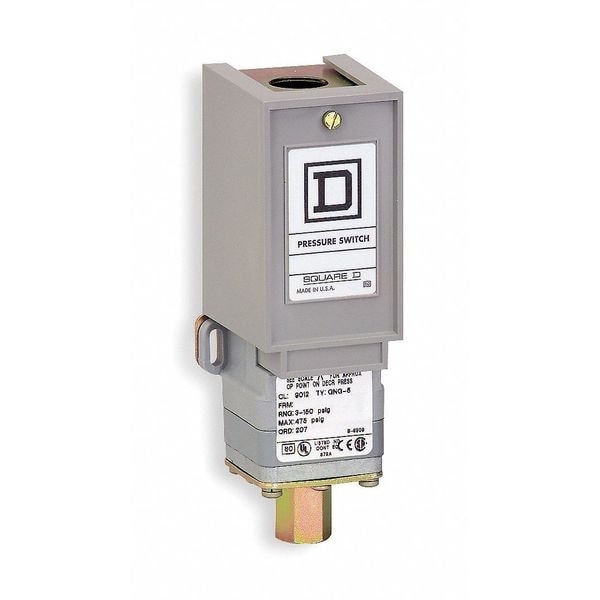

The Schneider Electric 9012GNG5 is a standard pressure switch with a diaphragm actuation type. This switch opens or closes an electrical circuit in response to a change in fluid pressure. It features a single 1/4-18" FNPT pressure connection port and a plastic housing, with SPDT contacts rated at 10A @ 480V AC and 0.11A @ 250V DC, and is compliant with CE, CSA C22.2, RoHS, and UL 508 standards.
