- Number of Pressure Connection Ports: 1
- Pressure Connection Type: 1/4-18" FNPT
- Housing Material: Aluminum
- Temp. Range: -10 to 185 °F
- Max. Pressure: 10000 psi
- Pressure Switch Differential: 59 to 200 psi
Specifications
| Part Number | 9012GCW1 |
| Brand | Telemecanique |
| Action | Standard |
| Contact Form | SPDT |
| Number of Pressure Connection Ports | 1 |
| Pressure Connection Type | 1/4-18" FNPT |
| Range | 20 to 1000 psi |
| Manufacturer Warranty Length | 18 mo |
| Item | Pressure Switch |
| Housing Material | Aluminum |
| Factory On Setting | 1000 psi |
| Factory Off Setting | 20 psi |
| Standards | CE, RoHS, UL 508 |
| Actuation Type | Piston |
| DC Contact Rating | 0.11A @ 250V, 0.22A @ 125V |
| AC Contact Rating | 10A @ 480V |
| Series | 9012G |
| Temp. Range | -10 to 185 °F |
| IP Rating | 54 |
| Max. Pressure | 10000 psi |
| Special Features | Mercury Free; Green Premium product |
| Pressure Switch Differential | 59 to 200 psi |
| Pressure Switch Port Type | 1-Port 1/4-18 in FNPT |
| Pressure Switch Range | 20 to 1000 psi |
| Pressure Switch Electrical Contact Form | SPDT |
| Electrical Connection | Screw-Clamp Terminals |
| Material | Die cast aluminium alloy |
| Differential Pressure - Maximum | 200 psi |
| Media Temperature - Minimum | -15 Degrees F |
| Pressure - Minimum | 20 psi |
| Differential Pressure - Minimum | 59 psi |
| Deadband Adjustability | Adjustable |
| Proof Pressure | 10,000 psi |
| Pressure - Maximum | 1,000 psi |
| Media Temperature - Maximum | 250 Degrees F |
Description

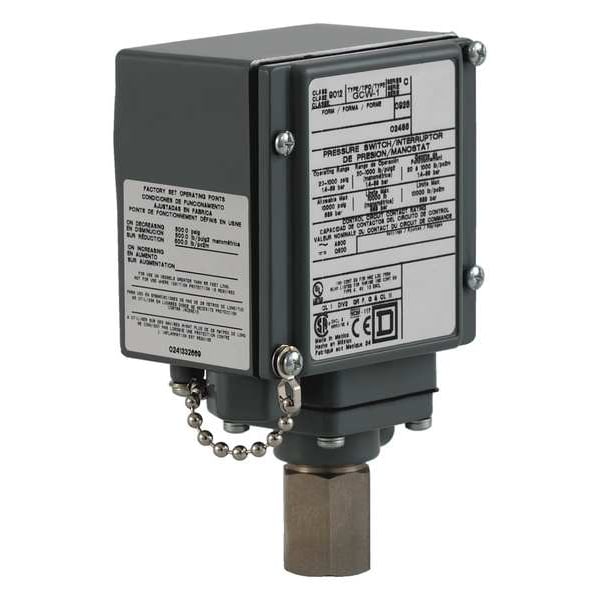

The Telemecanique 9012GCW1 is a standard pressure switch with a single 1/4-18" FNPT pressure connection port. This piston-actuated switch opens or closes an electrical circuit in response to system pressure changes, featuring SPDT contacts with AC ratings of 10A @ 480V and DC ratings of 0.11A @ 250V and 0.22A @ 125V. The aluminum housing meets CE, RoHS, and UL 508 standards.
