- Mounting Hole Diameter: 0.2 in
- Amps: 10
- NEMA Rating: 1, 12, 13, 2, 4, 6, 6P
- Operating Temp. Range: -20 Degrees to 185 Degrees F
- Voltage Rating: 600VAC/DC
- Body Material: Zinc
Specifications
| Part Number | 9007C62B2 |
| Brand | Schneider Electric |
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | No Lever, Rotary |
| Contact Form- Switches | 2NC/2NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 10A at 600V |
| Body Width - Limit Switch | 0.83 in |
| Width | 1.55" |
| Body Height - Limit Switch | 2.5 in |
| Height | 4.02" |
| Depth | 1.79" |
| Body Depth - Limit Switch | 1.14 in |
| Body Width | 0.83 in |
| Overall Height | 4.02 in |
| Body Height | 2.5 in |
| Mounting Hole Diameter | 0.2 in |
| Overall Width | 1.55 in |
| Overall Depth | 2.5 in |
| Manufacturer Warranty Length | 18 mo |
| Body Depth | 1.14 in |
| Item | Heavy Duty Limit Switch |
| DC Contact Rating - Limit Switch | 10A at 600V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Actuator Style | Rotary Head, No Lever |
| Boot Sealed Actuator - Limit Switch | No |
| Wiring Entry | 1/2 in NPT |
| Operating Force | 4.0 in-lb |
| Contact Form | 2NO/2NC |
| Actuator Location | Side |
| Amps | 10 |
| Mounting Hole - Limit Switch | (2) 0.20 in dia |
| Stem Thread - Limit Switch | No Stem |
| Travel | Total Travel 90 Degrees |
| Boot Sealed Actuator (Limit Switch) | No |
| DC Contact Rating | 10 A @ 600 V |
| Body Style (Limit Switch) | Miniature |
| Mounting Hole Spacing - Limit Switch | 2.35 in x 1.17 in |
| NEMA Rating | 1, 12, 13, 2, 4, 6, 6P |
| Electrical Connection | Screw Clamp Terminals |
| Series | 9007C |
| Contact Form - Limit Switch | 2NC/2NO |
| Movement | CCW, CW |
| Mounting Hole Pattern - Limit Switch | 2 Hole Diagonal |
| Limit Switch Style | Heavy Duty Limit Switch |
| Actuator Style (Limit Switch) | Rotary, No Lever |
| AC Contact Rating | 10 A @ 600 V |
| Operating Temp. Range | -20 Degrees to 185 Degrees F |
| Actuator Location (Limit Switch) | Side |
| Standards | C22-2-14-95, CE, CSA, EN 60947-1, EN 60947-5-1, IEC 60947, NEMA 250, UL Listed, UL 508 |
| Voltage Rating | 600VAC/DC |
| IP Rating | IP67 |
| Body Material | Zinc |
| Basic Actuator Style (Limit Switch) | Rotary |
| Contact Material | silver contacts |
| Special Features | lateral approach, 1 or 2 programmable direction |
| Head Material | zinc |
| Actuation Type | CW and CCW || from left and right |
| Shock Resistance | 60 gn 9 ms IEC 60068-2-27 |
| Short Circuit Protection | 10 A CC non-time delay |
| Electrical Durability | 1000000 cycles |
| Head Type | rotary head |
| Vibration Resistance | 25 gn 10-150 Hz)IEC 60068-2-6 |
| Mechanical Durability | 10000000 cycles |
| Min. Actuation Velocity Horizontal | 90 ft/min with 45° cam angle, levers only || 130 ft/min with 30° cam angle, levers only |
| Weight | 1.25 lb(US) |
| Contact Action | snap action |
| Operating Torque - Maximum | 4 in-lb |
| Boot Sealed Actuator | No Boot Included |
| Mounting Style | Surface |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Body Configuration | Plug-In |
| Mounting Hole Vertical Center to Center Distance | 60 mm |
| Total Travel | 90 Degrees |
| Includes Actuator | No Actuator Included |
| Pretravel | 10 Degrees |
| Number of Mounting Holes | 2 |
| Directional Movement | CCW/CW |
| Operating Temperature - Maximum | 185 Degrees F |
| Operating Temperature - Minimum | -20 Degrees F |
| NEMA Enclosure Rating | 1, 12, 13, 2, 4, 6, 6P |
| Mounting Hole Horizontal Center to Center Distance | 30 mm |
| Number Of Poles | 2 |
| Type Of Operator | zinc spring return without operating lever 9007C lever |
Description

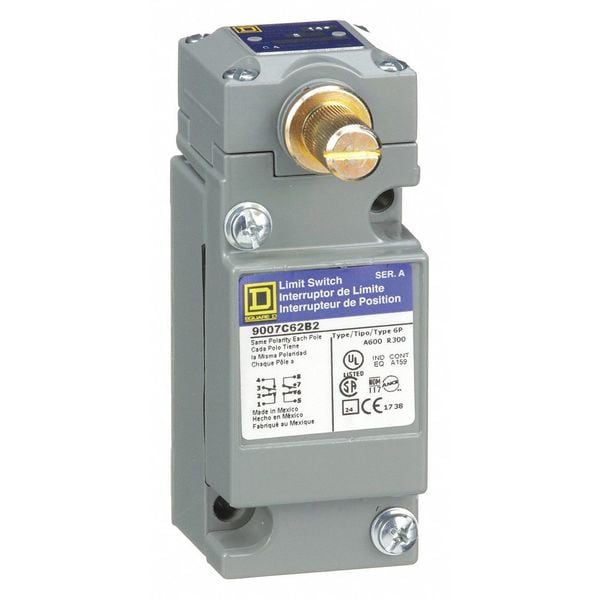

The Schneider Electric 9007C62B2 is a heavy duty limit switch with a side-mounted rotary head and no lever. This type of switch opens or closes electrical contacts based on the rotational position of its actuator, controlling machinery or equipment. It is rated for 10A at 600V AC and 10A at 600V DC.
