- Mounting Hole Diameter: 0.2 in
- Amps: 10
- NEMA Rating: 1, 12, 13, 2, 4, 6, 6P
- Operating Temp. Range: -20 Degrees to 185 Degrees F
- Body Material: Zinc
- Voltage Rating: 600VAC/DC
Specifications
| Part Number | 9007C54B2 |
| Brand | Square D |
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | No Lever, Rotary |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 10A at 600V |
| Body Width - Limit Switch | 0.83 in |
| Body Depth - Limit Switch | 1.14 in |
| Body Height - Limit Switch | 2.5 in |
| Width | 1.55" |
| Height | 4.02" |
| Depth | 1.79" |
| Manufacturer Warranty Length | 18 mo |
| Body Depth | 1.14 in |
| Overall Depth | 2.5 in |
| Mounting Hole Diameter | 0.2 in |
| Overall Height | 4.02 in |
| Body Width | 0.83 in |
| Body Height | 2.5 in |
| Overall Width | 1.55 in |
| Item | Heavy Duty Limit Switch |
| DC Contact Rating - Limit Switch | 10A at 600V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Boot Sealed Actuator (Limit Switch) | No |
| Actuator Style | Rotary Head, No Lever |
| Amps | 10 |
| NEMA Rating | 1, 12, 13, 2, 4, 6, 6P |
| Contact Form | 1NO/1NC |
| Actuator Location | Side |
| Actuator Style (Limit Switch) | Rotary, No Lever |
| Contact Form - Limit Switch | 1NC/1NO |
| IP Rating | IP67 |
| Stem Thread - Limit Switch | No Stem |
| Basic Actuator Style (Limit Switch) | Rotary |
| Operating Force | 4.0 in-lb |
| DC Contact Rating | 10 A @ 600 V |
| Standards | C22-2-14-95, CE, CSA, EN 60947-1, EN 60947-5-1, IEC 60947, NEMA 250, UL Listed, UL 508 |
| Mounting Hole - Limit Switch | (2) 0.20 in dia |
| Body Style (Limit Switch) | Miniature |
| Mounting Hole Spacing - Limit Switch | 2.35 in x 1.17 in |
| Limit Switch Style | Heavy Duty Limit Switch |
| Operating Temp. Range | -20 Degrees to 185 Degrees F |
| Electrical Connection | Screw Clamp Terminals |
| Movement | CCW, CW |
| Actuator Location (Limit Switch) | Side |
| Travel | Total Travel 90 Degrees |
| Boot Sealed Actuator - Limit Switch | No |
| Series | 9007C |
| Wiring Entry | 1/2 in NPT |
| Body Material | Zinc |
| Voltage Rating | 600VAC/DC |
| AC Contact Rating | 10 A @ 600 V |
| Mounting Hole Pattern - Limit Switch | 2 Hole Diagonal |
| Head Material | Zinc |
| Special Features | lateral approach, 1 or 2 programmable direction |
| Contact Material | Silver Contacts |
| Mechanical Durability | 10000000 cycles |
| Vibration Resistance | 25 gn 10-150 Hz)IEC 60068-2-6 |
| Short Circuit Protection | 10 A CC non-time delay |
| Electrical Durability | 1000000 cycles |
| Shock Resistance | 60 gn 9 ms IEC 60068-2-27 |
| Actuation Type | CW and CCW || from left and right |
| Weight | 1.25 lb(US) |
| Head Type | Rotary Head |
| Min. Actuation Velocity Horizontal | 90 ft/min with 45° cam angle, levers only || 130 ft/min with 30° cam angle, levers only |
| Contact Action | Snap Action |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Operating Torque - Maximum | 4 in-lb |
| Mounting Hole Horizontal Center to Center Distance | 30 mm |
| Boot Sealed Actuator | No Boot Included |
| Number of Mounting Holes | 2 |
| NEMA Enclosure Rating | 1, 12, 13, 2, 4, 6, 6P |
| Mounting Hole Vertical Center to Center Distance | 60 mm |
| Operating Temperature - Minimum | -20 Degrees F |
| Mounting Style | Surface |
| Directional Movement | CCW/CW |
| Includes Actuator | No Actuator Included |
| Operating Temperature - Maximum | 185 Degrees F |
| Body Configuration | Plug-In |
| Pretravel | 10 Degrees |
| Total Travel | 90 Degrees |
| Number Of Poles | 1 |
| Type Of Operator | zinc spring return without operating lever 9007C lever |
Description

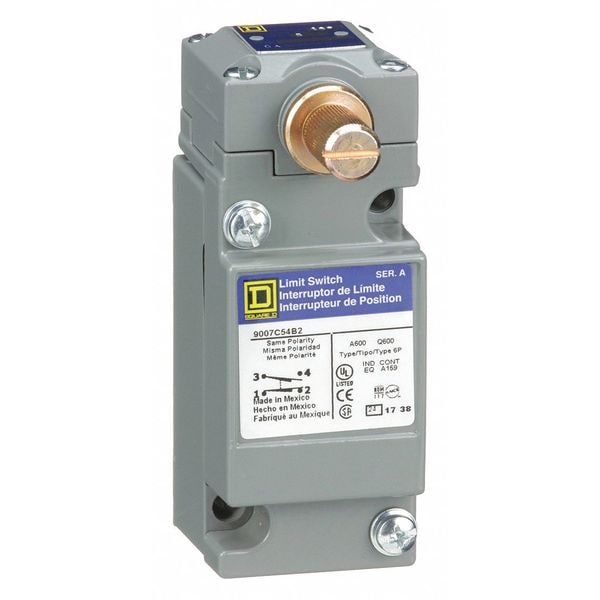

The Square D 9007C54B2 is a heavy duty limit switch with a rotary actuator style and no lever. This type of limit switch detects the presence or position of an object by opening or closing electrical contacts when the rotary actuator is turned. It is rated for 10A at 600V AC and DC, with a side actuator location and a 1NC/1NO contact configuration.
