- Mounting Hole Diameter: 0.2 in
- Operating Temp. Range: 0 Degrees to 185 Degrees F
- NEMA Rating: 1, 12, 13, 2, 4, 6, 6P
- Amps: 10
- Body Material: Zinc
- Voltage Rating: 600VAC/DC
Specifications
| Part Number | 9007C52GD |
| Brand | Schneider Electric |
| Basic Actuator Style - Limit Switch | Plunger |
| Actuator Style - Limit Switch | Adjustable Push, Rod |
| Contact Form- Switches | 1NC/1NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 10A at 600V |
| Width | 1.55" |
| Depth | 1.79" |
| Actuator Length - Limit Switch | 1.16 in |
| Body Width - Limit Switch | 0.83 in |
| Height | 3.14" |
| Body Height - Limit Switch | 2.5 in |
| Actuator Length | 1.16" |
| Body Depth - Limit Switch | 1.14 in |
| Manufacturer Warranty Length | 18 mo |
| Overall Height | 3.14 in |
| Mounting Hole Diameter | 0.2 in |
| Body Width | 0.83 in |
| Body Height | 2.5 in |
| Overall Depth | 2.71 in |
| Body Depth | 1.14 in |
| Overall Width | 1.55 in |
| Item | Heavy Duty Limit Switch |
| DC Contact Rating - Limit Switch | 10A at 600V |
| Body Style - Limit Switch | Miniature |
| Mounting - Limit Switch | Surface |
| Actuator Style | Plunger |
| Stem Thread - Limit Switch | No Stem |
| DC Contact Rating | 10 A @ 600 V |
| Standards | CSA, UL Listed |
| Series | 9007C |
| Basic Actuator Style (Limit Switch) | Plunger |
| Electrical Connection | Screw Clamp Terminals |
| Operating Force | 4.0 in-lb |
| Boot Sealed Actuator - Limit Switch | No |
| Actuator Location | Side |
| Mounting Hole Pattern - Limit Switch | 2 Hole Diagonal |
| Contact Form | 1NO/1NC |
| Boot Sealed Actuator (Limit Switch) | No |
| Operating Temp. Range | 0 Degrees to 185 Degrees F |
| Actuator Location (Limit Switch) | Side |
| Wiring Entry | 1/2 in NPT |
| IP Rating | IP67 |
| Body Style (Limit Switch) | Miniature |
| Limit Switch Style | Heavy Duty Limit Switch |
| NEMA Rating | 1, 12, 13, 2, 4, 6, 6P |
| Amps | 10 |
| Mounting Hole - Limit Switch | (2) 0.20 in dia |
| Movement | Horizontal |
| Contact Form - Limit Switch | 1NC/1NO |
| Body Material | Zinc |
| Actuator Style (Limit Switch) | Rod, Adjustable Push |
| Mounting Hole Spacing - Limit Switch | 2.35 in x 1.17 in |
| Voltage Rating | 600VAC/DC |
| Travel | 0.25 in |
| AC Contact Rating | 10 A @ 600 V |
| Head Material | zinc |
| Contact Material | silver contacts |
| Special Features | lateral approach, 1 direction |
| Actuation Type | on end |
| Mechanical Durability | 10000000 cycles |
| Contact Action | snap action |
| Shock Resistance | 60 gn 9 ms IEC 60068-2-27 |
| Head Type | plunger head |
| Short Circuit Protection | 10 A CC non-time delay |
| Electrical Durability | 1000000 cycles |
| Vibration Resistance | 25 gn 10-150 Hz)IEC 60068-2-6 |
| Weight | 1.25 lb(US) |
| Body Configuration | Plug-In |
| Pretravel | 0.08 in |
| Mounting Hole Horizontal Center to Center Distance | 30 mm |
| Plunger Adjustability | Adjustable |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Operating Force - Maximum | 4 lbf |
| NEMA Enclosure Rating | 1, 12, 13, 2, 4, 6, 6P |
| Number of Mounting Holes | 2 |
| Mounting Hole Vertical Center to Center Distance | 60 mm |
| Directional Movement | Linear |
| Operating Temperature - Maximum | 185 Degrees F |
| Mounting Style | Surface |
| Boot Sealed Actuator | No Boot Included |
| Operating Temperature - Minimum | -20 Degrees F |
| Number Of Poles | 1 |
| Type Of Operator | stainless steel spring return side plunger adjustable) |
Description

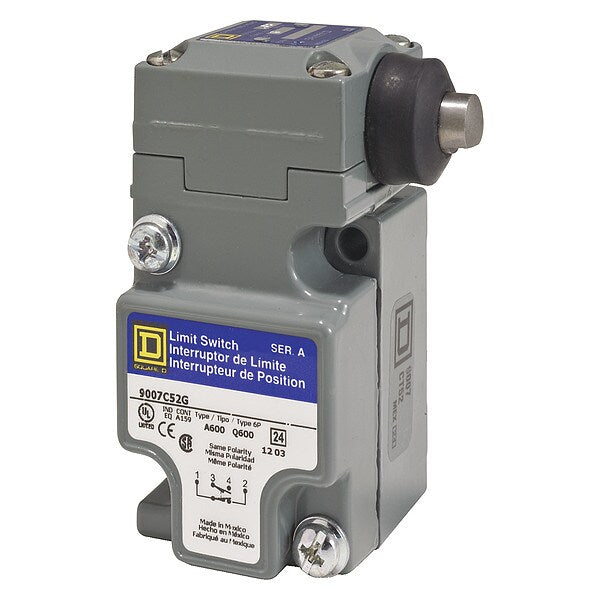

The Schneider Electric 9007C52GD is a heavy duty limit switch with an adjustable push rod plunger actuator located on the side. This type of switch opens or closes electrical contacts when its actuator is physically depressed by a moving part. It is rated for 10A at 600V AC and 10A at 600V DC.
