- Size: 30 mm
- Joystick Material: Metal
- Mounting Diameter: 30 mm
- Panel Cutout Diameter: 30 mm
- NEMA Rating: 13, 4
- Overvoltage Category: II IEC 61140
Specifications
| Part Number | 9001K35 |
| Brand | Schneider Electric |
| Size | 30 mm |
| Number of Directions | 4 |
| Contact Form | Not Included |
| Joystick Material | Metal |
| Action | Momentary |
| Mounting Diameter | 30 mm |
| Panel Cutout Diameter | 30 mm |
| Shaft Length | 3.15 in |
| Manufacturer Warranty Length | 18 mo |
| Item | Joystick |
| NEMA Rating | 13, 4 |
| Latching / Non-Latching | Non-Latching |
| Direction of Operation | Vertical and Horizontal |
| Bezel | Metal |
| Standards | China RoHS, EU RoHS, REACH, WEEE |
| IP Rating | IP66 |
| Product Or Component Type | head for joystick controller |
| Protective Treatment | TC |
| Device Short Name | 9001K |
| Overvoltage Category | II IEC 61140 |
| Ambient Air Temperature For Storage | -40-70°C |
| Nema Degree Of Protection | NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Contacts Type And Composition | without contact block |
| Operator Profile | 80 mm long operating shaft |
| Operating Position | any position |
| Device Presentation | basic element |
| Bezel Material | Metal |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Shape Of Signaling Unit Head | octagonal |
| Product Certifications | UL 508 || NEMA |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Type Of Operator | spring return |
| Ambient Air Temperature For Operation | -25-70°C |
| Products By Industry | Electrical |
| NEMA Enclosure Rating | 1, 12, 13, 2, 3, 3R, 4 |
| Latch Type | Non-Latching |
| Number of Positions | 4 |
| Series | 9001K |
| Switch Action | Momentary |
Description

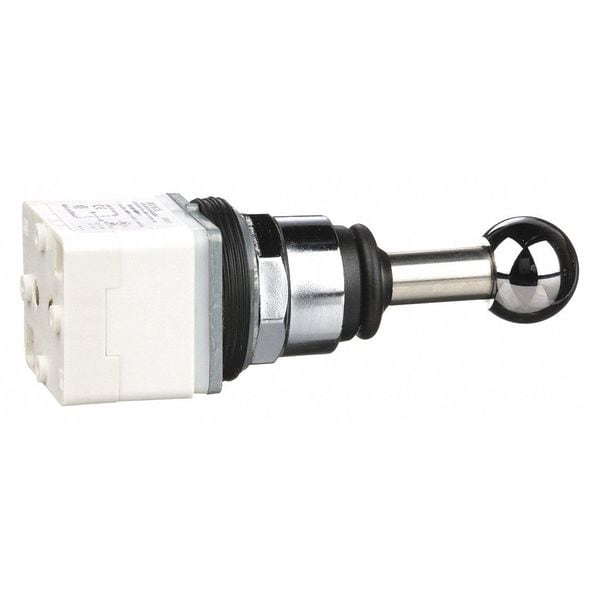

The Schneider Electric 9001K35 is a metal joystick head for a joystick controller. This joystick operator provides momentary action in four positions (vertical and horizontal). It carries NEMA 4 and 13 ratings, an IP66 enclosure rating, and an overvoltage category of II per IEC 61140, and complies with China RoHS, EU RoHS, REACH, and WEEE standards.
