- Enclosure NEMA Rating: No Enclosure
- Amps AC: 30 A
- HP @ 1 Phase - 120V: 2 hp
- HP @ 1 Phase - 240V: 5 hp
- Hz: 50/60
- Horsepower @ Single Phase - 120V AC: 2 hp
Specifications
| Part Number | 8911DPSO32V09 |
| Brand | Square D |
| Coil Volts | 208 to 240V AC |
| Number of Poles | 2 |
| Enclosure NEMA Rating | No Enclosure |
| Amps AC | 30 A |
| HP @ 1 Phase - 120V | 2 hp |
| Depth | 4.09 in |
| Width | 3.5 in |
| Height | 6.73 in |
| Overall Width | 3.5 in |
| Overall Depth | 4.09 in |
| Mounting Hole Distance - Height | 8.13 in |
| Overall Height | 6.73 in |
| Item | Definite Purpose Magnetic Motor Starter |
| HP @ 1 Phase - 240V | 5 hp |
| Action | Nonreversing |
| Includes | Trip-Free Reset Mechanism |
| Standards | REACH, RoHS, UL Listed |
| Thermal Unit Code | G3 |
| Hz | 50/60 |
| Horsepower @ Single Phase - 120V AC | 2 hp |
| Coil Voltage | 208-240V AC |
| Series | Class 8911 Type DP |
| Reversing Capability | Non-Reversing |
| Frequency | 50/60 Hz |
| Horsepower @ Single Phase - 240V AC | 5 hp |
| Mechanical Operating Durability | 500,000 |
| Maximum Voltage Rating | 600V AC |
| Locked Rotor Load | 120 A @ 575V AC, 150 A @ 460V AC, 180 A @ 230V AC |
| Current AC | 30 A |
| Overload Protection Type | Melting Alloy |
| Phase | Single |
| NEMA Enclosure Rating | No Enclosure |
Description

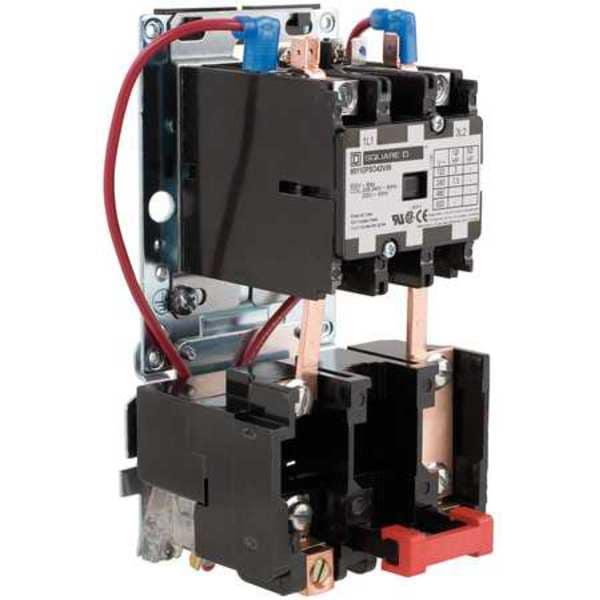

The Square D 8911DPSO32V09 is a nonreversing definite purpose magnetic motor starter. This type of starter provides a means to safely start and stop an electric motor, incorporating a trip-free reset mechanism for overload protection. It is rated for 30 A, 2 hp at 120V and 5 hp at 240V on single-phase power, operates at 50/60 Hz, and is UL Listed, REACH, and RoHS compliant.
