- Coil Voltage: 120V AC
- NEMA Size: 0
- HP @ 3 Phase - 575V: 5 hp
- Operating Voltage: 600V AC
- Horsepower @ Three Phase - 480V AC: 5 hp
- Phase: Three
Specifications
| Part Number | 8536SBO2V02H30S |
| Brand | Square D |
| Auxiliary Contact Form | No Auxiliary Contacts |
| Coil Voltage | 120V AC |
| Number of Poles | 3 |
| Reversing Capability | Non-Reversing |
| Terminal Connection Type | Screw Clamp |
| NEMA Size | 0 |
| Overall Width | 3.5 in |
| Overall Depth | 4.22 in |
| Overall Height | 6.77 in |
| Item | NEMA Magnetic Motor Starter |
| Number of Auxillary Contacts | 0 |
| Standards | CSA, UL Listed |
| Includes | Solid state overload relay |
| HP @ 3 Phase - 575V | 5 hp |
| Enclosure Type | Open |
| Operating Voltage | 600V AC |
| Horsepower @ Three Phase - 480V AC | 5 hp |
| Phase | Three |
| Operator | None |
| Includes Auxiliary Contacts | No |
| Horsepower @ Three Phase - 208V AC | 3 hp |
| Includes Pilot Light | No |
| Minimum Overload Relay Current Setting | 6 A |
| Horsepower @ Three Phase - 240V AC | 3 hp |
| NEMA Enclosure Rating | No Enclosure |
| Current AC | 18 A |
| Horsepower @ Three Phase - 600V AC | 5 hp |
| Frequency | 50/60 Hz |
| Maximum Voltage Rating | 600V AC |
| Trip Class | 10/20 |
| Overload Protection Type | Electronic |
| Maximum Overload Relay Current Setting | 18 A |
| Starter Style | NEMA |
| Auxiliary Contacts | Without |
| Control Units | No control units |
| Horsepower Rating | 3 HP 200 V AC; 3 HP 230 V AC; 5 HP 460 V AC; 5 HP 575 V AC |
| Control Circuit Type | Separate Control Circuit |
| Short Circuit Current Rating | Circuit-breaker 70 A maximum: 100 kA at 480 V AC; Fuse J 60 A maximum: 100 kA at 600 V AC; Fuse T 60 A maximum: 100 kA at 600 V AC; Fuse RK1 60 A maximum: 100 kA at 600 V AC; Fuse RK5 60 A maximum: 100 kA at 600 V AC |
| Full Load Current - Inductive | 18 A |
Description

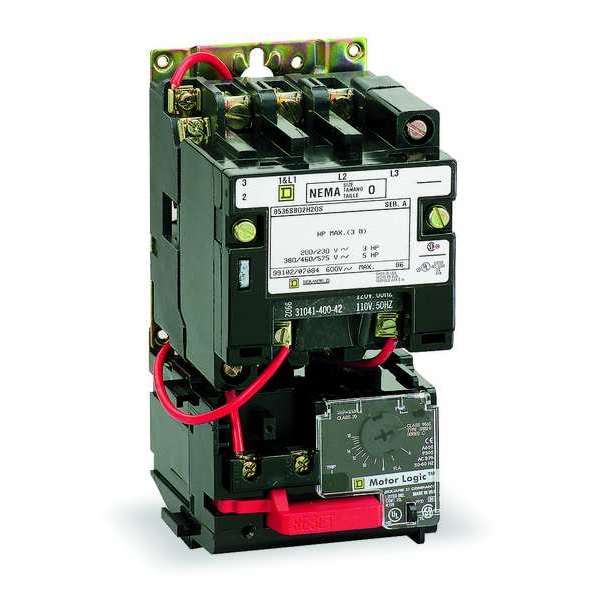

The Square D 8536SBO2V02H30S is a NEMA Magnetic Motor Starter, a non-reversing device that controls the power to an electric motor by switching it on and off. This unit operates on 120V AC coil voltage, includes a solid state overload relay, and is CSA and UL Listed. It is rated for 5 hp at 575V three-phase and features a NEMA Size 0 enclosure with screw clamp terminals.
