- Amps: 18 A
- Voltage: 600V AC
- Starter Size: 0
- NEMA Rating: Not Rated
- Rated Power In Hp: 3 HP 200 V AC, 3 HP 230 V AC, 5 HP 460 V AC, 5 HP 575 V AC
- Nema Degree of Protection: not rated (open device)
Specifications
| Part Number | 8536SBO2V02H309S |
| Brand | Square D |
| Amps | 18 A |
| Voltage | 600V AC |
| Standards | CSA Approved, UL Listed |
| Height | 172 mm |
| Starter Type | Non-Reversing |
| Width | 89 mm |
| Depth | 107 mm |
| Starter Size | 0 |
| Item | Nonreversing magnetic starter,Size 0,1 |
| NEMA Rating | Not Rated |
| Features | PVC Free |
| Poles Description | 3P |
| Motor Starter Type | non reversing |
| Auxiliary Contact Composition | without |
| Product or Component Type | motor starter |
| Range of Product | S |
| Thermal Overload Type | solid state Motor Logic class 10/20 |
| Local Signalling | without pilot light |
| Rated Power In Hp | 3 HP 200 V AC, 3 HP 230 V AC, 5 HP 460 V AC, 5 HP 575 V AC |
| Nema Degree of Protection | not rated (open device) |
| Electrical Connection | screw clamp terminals |
| [Ue] Rated Operational Voltage | 600 V AC |
| Control Circuit | separate control circuit |
| Phase | 3 phase |
| [Uc] Control Circuit Voltage | 110 V AC 50 Hz, 120 V AC 60 Hz |
| Pvc Free | Yes |
| Control Type | no control units |
Description

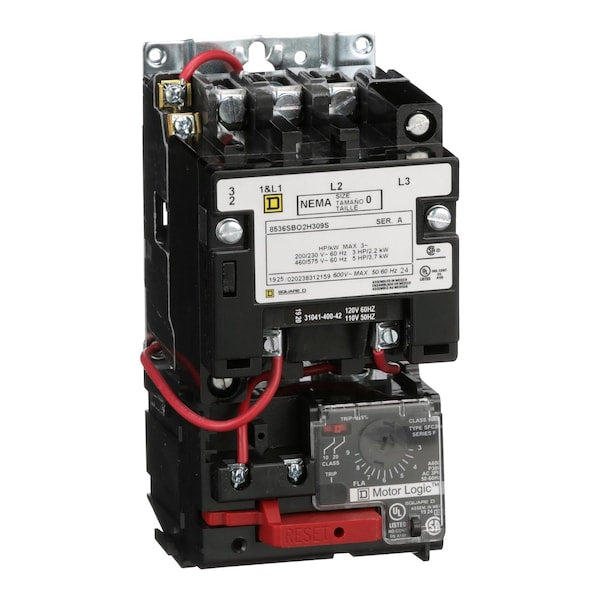

The Square D 8536SBO2V02H309S is a nonreversing magnetic motor starter, Size 0, from the Type S series. This NEMA motor starter controls the on/off operation of a 3-phase motor, with a 120VAC coil and a 3-pole configuration rated for 18 A at 600V AC. It is CSA Approved and UL Listed, with a 5HP rating at 460VAC and an SCCR up to 100kA.
