- Coil Voltage: 24V AC
- Contact Material: Silver Alloy
- HP @ 120V: 1/10 hp
- HP @ 240V: 1/10 hp
- Minimum Operating Temperature: -40 Degrees F
- Maximum Switching Voltage: 300V AC, 30V DC
Specifications
| Part Number | 8501RS42P14V14 |
| Brand | Schneider Electric |
| Mounting Style | Socket |
| Electrical Connection | Quick Connect |
| Base Shape | Square |
| Number of Pins | 8 |
| Coil Voltage | 24V AC |
| Overall Height - Relay | 1.65 in |
| Body Width | 0.83 in |
| Overall Depth | 1.65 in |
| Body Height | 1.07 in |
| Flat Pin Width | 0.18 in |
| Body Depth | 1.65 in |
| Item | General Purpose Relay |
| Current Rating | 15 A |
| Contact Form | DPDT |
| Contact Rating (AC) | 15 A @ 120V, 15 A @ 277V |
| Contact Rating (DC) | 10 A @ 28V |
| Status Indicator | LED Indicator, Mechanical Flag |
| Features | SPDT through 4PDT, AC or DC operated, Horsepower rated, Socket compatible, Manual operator/ Green LED pilot light options |
| Power Consumption - Relay | 1.4 VA |
| Contact Material | Silver Alloy |
| HP @ 120V | 1/10 hp |
| HP @ 240V | 1/10 hp |
| Standards | CE Certified, CSA Certified, UL Listed |
| Minimum Operating Temperature | -40 Degrees F |
| Maximum Switching Voltage | 300V AC, 30V DC |
| Power Consumption | 1.4 VA |
| Horsepower @ 120V AC | 1/2 hp |
| Maximum Operating Temperature | 131 Degrees F |
| Compatible with Manufacturer Model Number | 8501NR42, 8501NR42B |
| Socket Code | D |
| Motor Rated | Yes |
| Sealing | Enclosed |
| Series | Square D 8501R Miniature Series |
| Push-To-Test Method | No Button |
| Response Time | 20 msec |
| Horsepower @ 240V AC | 1/10 hp |
| Pin Shape | Flat |
| Compatible Manufacturer Part Number | 8501NR42, 8501NR42B |
| Compatible Manufacturer Model Number | 8501NR42, 8501NR42B |
| Switching Voltage | 300 V AC; 30 V DC |
| Operating Time | 20 ms - pick-up || 20 ms - drop-out |
Description

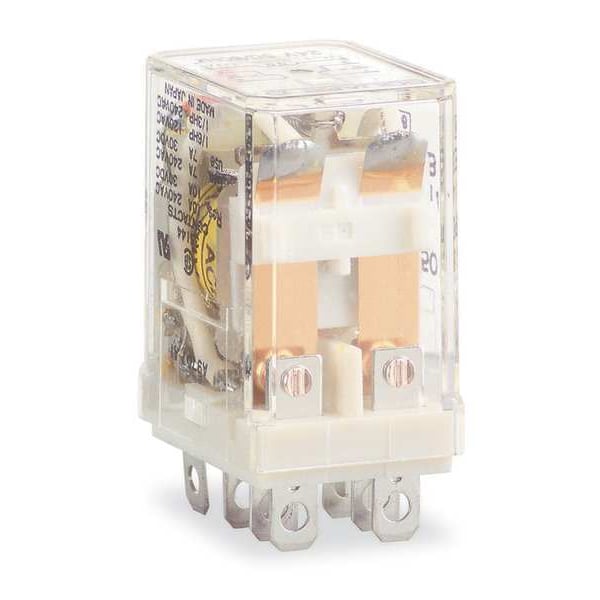

The Schneider Electric 8501RS42P14V14 is a general purpose relay with a 24V AC coil and a 15 A current rating. This relay switches electrical loads using a silver alloy contact material, with AC contact ratings of 15 A at 120V and 15 A at 277V, and a DC contact rating of 10 A at 28V. It features SPDT through 4PDT configurations, is socket compatible, and includes a manual operator with a green LED pilot light option.
