- Coil Voltage: 120V AC
- HP @ 240V: Not Rated
- Contact Material: Silver Tin Oxide
- HP @ 120V: Not Rated
- Horsepower @ 120V AC: Not Rated
- Maximum Switching Voltage: 240V AC, 30V DC
Specifications
| Part Number | 8501RS34V20 |
| Brand | Schneider Electric |
| Mounting Style | Socket |
| Electrical Connection | Quick Connect |
| Base Shape | Square |
| Number of Pins | 14 |
| Coil Voltage | 120V AC |
| Overall Height - Relay | 1.53 in |
| Body Height | 2.77 in |
| Body Depth | 1.4 in |
| Body Width | 1.38 in |
| Flat Pin Width | 0.09 in |
| Overall Depth | 1.53 in |
| Item | General Purpose Relay |
| Current Rating | 5 A |
| Contact Form | 4PDT |
| Contact Rating (AC) | 5 A @ 120/240V |
| Contact Rating (DC) | 5 A @ 28V |
| Power Consumption - Relay | 1.2 VA |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Status Indicator | No Indicator |
| HP @ 240V | Not Rated |
| Contact Material | Silver Tin Oxide |
| Standards | CE Certified, CSA Certified, UL Listed |
| Socket | Mfr. No. 8501NR45 |
| Features | Class 1 Div. 2, Hermetically Sealed |
| HP @ 120V | Not Rated |
| Socket Code | G |
| Compatible with Manufacturer Model Number | 8501NR45, 8501NR45B |
| Power Consumption | 1.2 VA |
| Horsepower @ 120V AC | Not Rated |
| Response Time | 20 msec |
| Sealing | Hermetically Sealed |
| Maximum Switching Voltage | 240V AC, 30V DC |
| Series | Square D 8501R Miniature Control Series |
| Horsepower @ 240V AC | Not Rated |
| Minimum Operating Temperature | -40 Degrees F |
| Motor Rated | Not Rated - Not Rated |
| Maximum Operating Temperature | 131 Degrees F |
| Push-To-Test Method | No Button |
| Pin Shape | Flat |
| Compatible Manufacturer Part Number | 8501NR45, 8501NR45B |
| Compatible Manufacturer Model Number | 8501NR45, 8501NR45B |
| Operating Time | 20 ms - pick-up || 20 ms - drop-out |
| Switching Voltage | 30 V DC; 240 V AC |
Description

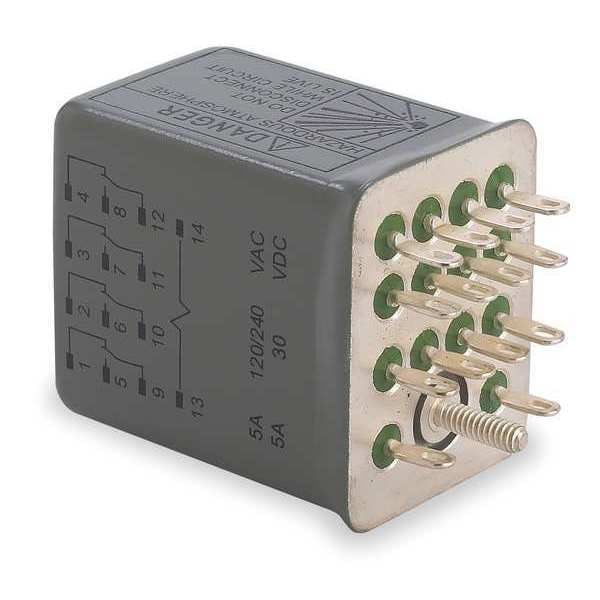

The Schneider Electric 8501RS34V20 is a square, general-purpose relay with 14 pins and a 5 A current rating. It uses a 120V AC coil and features silver tin oxide contacts rated at 5 A @ 120/240V AC and 5 A @ 28V DC, with quick-connect electrical connections. This relay is designed for use with a corresponding socket.
