- Nominal Pipe Size: 1/4 in
- Center Line Pipe Center Size: 2-1/4 in
- Orifice Diameter: 1/8 in
- Voltage: 120V AC
- Seal Material: NBR
- Operating Pressure Differential - Maximum: 185 psi Air/Inert Gas, 90 psi Light Oil, 180 psi Water
Specifications
| Part Number | 8262H022 |
| Brand | Asco |
| For Media | Aggressive Gases, Aggressive Liquids, Air, Ammonia, Biodiesel Fuel, Cryogenic Fluids, Fuel Oil, Hot Water, Inert Gases, Light Oil, Liquid Propane Gas, Natural Gas, Oxygen, Steam, Water |
| Valve Ways | 2-Way |
| Valve Starting Configuration | Normally Closed |
| Inlet Connection Type | NPTF |
| Outlet Connection Type | NPTF |
| Nominal Pipe Size | 1/4 in |
| Overall Width | 1-11/16 in |
| Overall Height | 2-31/32 in |
| Center Line Pipe Center Size | 2-1/4 in |
| Overall Length | 1-9/16 in |
| Orifice Diameter | 1/8 in |
| Voltage | 120V AC |
| Valve Type | High Flow |
| Operation Type | Direct Acting |
| Seal Material | NBR |
| Operating Pressure Differential - Maximum | 185 psi Air/Inert Gas, 90 psi Light Oil, 180 psi Water |
| Operating Pressure Differential - Minimum | 0 psi Air/Inert Gas, Light Oil, Water |
| Item | Solenoid Valve |
| Body Material | Brass |
| Electrical Connections | 1/2" Conduit w/18" Leads |
| Valve Design | 2-Way/2-Position |
| Coil Insulation Class | F |
| Coil Enclosure | Without Junction Box, Watertight |
| IP Rating | IP66 |
| Standards | CSA, UL Listed |
| Application | Boilers, Burners, Car Wash Equipment, Compressors, Dishwashing and Laundry Equipment, Food Processing and Many Others, Pumps |
| Includes Seal | Yes |
| Wattage | 6.1 W |
| Thread Type | NPT |
| Operating Pressure Differential Hot Water - Maximum | Not Rated |
| Operating Pressure Differential Steam - Maximum | Not Rated |
| Ambient Temperature - Minimum | 14 Degrees F |
| Fluid Temperature - Maximum | 180 Degrees F |
| Operating Pressure Differential Water - Minimum | 0 psi |
| Mounting Orientation | Horizontal or Vertical |
| Operating Pressure Differential Light Oil - Maximum | 90 psi |
| NEMA Enclosure Rating | 1, 2, 3, 3S, 4, 4X |
| Ambient Temperature - Maximum | 131 Degrees F |
| Environmental Rating | Corrosive, Hazardous, Indoor, Outdoor |
| Operating Pressure Differential Water - Maximum | 180 psi |
| Coefficient of Volume (Cv) | 0.35 |
| Response Time | 1 sec |
| Frequency | 50 Hz, 60 Hz |
| Operating Pressure Differential Light Oil - Minimum | 0 psi |
| Valve Positions | 2-Position |
| Includes Coil | Yes |
Description

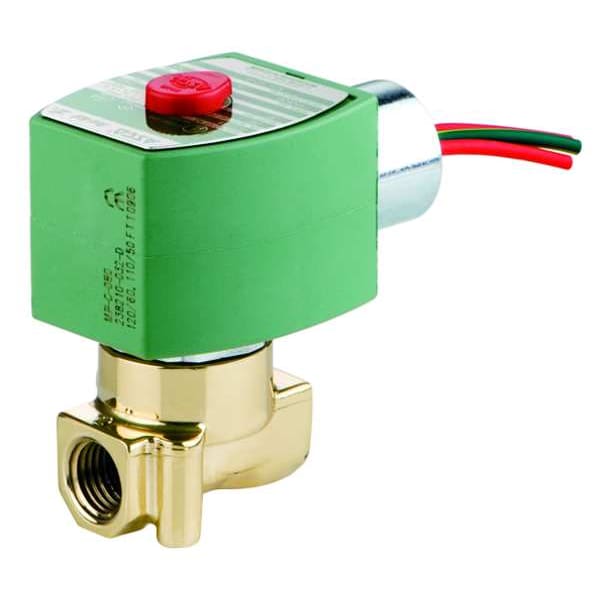

The Asco 8262H022 is a 2-way, 2-position, normally closed, direct-acting high-flow solenoid valve with a 1/4-inch NPTF inlet and outlet. It operates on 120V AC and uses an NBR seal, with a maximum operating pressure differential of 185 psi for air/inert gas, 90 psi for light oil, and 180 psi for water, and a minimum differential of 0 psi for those media.
