- Nominal Pipe Size: 3/4 in
- Center Line Pipe Center Size: 3-21/32 in
- Orifice Diameter: 3/4 in
- Voltage: 120V AC
- Seal Material: NBR
- Operating Pressure Differential - Maximum: 5 psi Air/Inert Gas, Fuel Gas, Water
Specifications
| Part Number | 8214G030 |
| Brand | Asco |
| For Media | Fuel Oil, Gas |
| Valve Ways | 2-Way |
| Valve Starting Configuration | Normally Closed |
| Nominal Pipe Size | 3/4 in |
| Inlet Connection Type | NPTF |
| Overall Height | 4-15/16 in |
| Overall Length | 3-5/16 in |
| Overall Width | 2-3/8 in |
| Center Line Pipe Center Size | 3-21/32 in |
| Orifice Diameter | 3/4 in |
| Outlet Connection Type | NPTF |
| Voltage | 120V AC |
| Valve Type | High Flow Gas Shut Off, Test Port |
| Operation Type | Pilot Operated |
| Seal Material | NBR |
| Operating Pressure Differential - Maximum | 5 psi Air/Inert Gas, Fuel Gas, Water |
| Operating Pressure Differential - Minimum | 0 psi Fuel Gas |
| Item | Solenoid Valve |
| Application | Finishing, Low Gas Supply, Painting, Space Constrained |
| Body Material | Aluminum |
| Ambient Temp. Range | -40 Degrees to 125 Degrees F |
| Electrical Connections | 1/2 in Conduit |
| Valve Design | 2-Way/2-Position |
| Standards | CSA C/I, CSA C22.2, CSA Z21.21, FM, UL Listed |
| Coil Insulation Class | F |
| Coil Enclosure | With Junction Box |
| BtuH | 247,500 BtuH |
| Valve Positions | 2-Position |
| Frequency | 60 Hz |
| Operating Pressure Differential Fuel Gas - Minimum | 0 psi |
| Operating Pressure Differential Steam - Maximum | Not Rated |
| Coefficient of Volume (Cv) | 5.1 |
| Fluid Temperature - Maximum | 125 Degrees F |
| Ambient Temperature - Minimum | -40 Degrees F |
| Gas Capacity | 247,500 BtuH |
| Ambient Temperature - Maximum | 140 Degrees F |
| Operating Pressure Differential Hot Water - Maximum | Not Rated |
| Wattage | 17.1 W |
| Thread Type | NPT |
| Response Time | 1 sec |
| Operating Pressure Differential Fuel Gas - Maximum | 5 psi |
| Operating Pressure Differential Light Oil - Maximum | Not Rated |
| Actuator Type | Double Solenoid |
| Mounting Orientation | Vertical |
| Includes Seal | Yes |
| NEMA Enclosure Rating | 1, 2, 3, 3S, 4, 4X |
| Includes Coil | Yes |
| Environmental Rating | Hazardous, Indoor, Outdoor |
| Operating Pressure Differential Water - Maximum | 5 psi |
Description

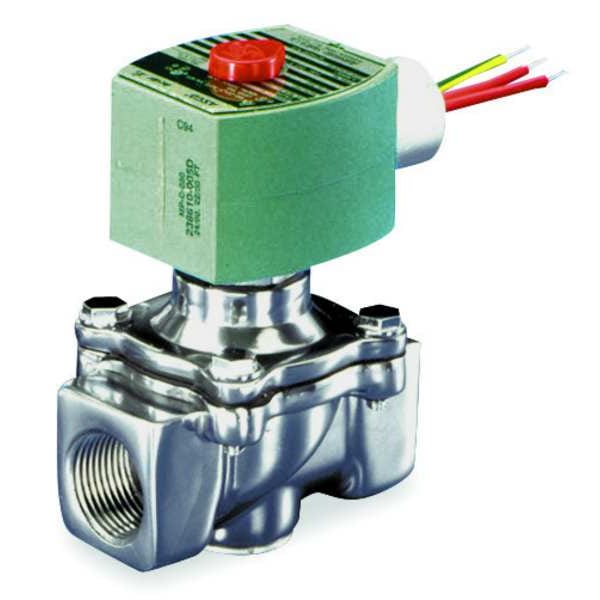

The Asco 8214G030 is a 2-way, 2-position, normally closed pilot-operated solenoid valve for high flow gas shut off with a test port. It operates on 120V AC and features NBR seals, with a maximum operating pressure differential of 5 psi for air/inert gas, fuel gas, and water, and a minimum of 0 psi for fuel gas.
