- Nominal Pipe Size: 3/4 in
- Center Line Pipe Center Size: 3 in
- Orifice Diameter: 3/4 in
- Voltage: 120V AC
- Seal Material: NBR
- Operating Pressure Differential - Maximum: 125 psi Air/Inert Gas, Light Oil, Water
Specifications
| Part Number | 8210G009 |
| Brand | Asco |
| For Media | Air, Inert Gas, Light Oil, Water |
| Valve Ways | 2-Way |
| Valve Starting Configuration | Normally Closed |
| Nominal Pipe Size | 3/4 in |
| Inlet Connection Type | NPTF |
| Overall Height | 3-5/8 in |
| Overall Length | 2-13/16 in |
| Overall Width | 2-5/16 in |
| Center Line Pipe Center Size | 3 in |
| Orifice Diameter | 3/4 in |
| Outlet Connection Type | NPTF |
| Voltage | 120V AC |
| Valve Type | High Flow |
| Operation Type | Pilot Operated |
| Seal Material | NBR |
| Operating Pressure Differential - Maximum | 125 psi Air/Inert Gas, Light Oil, Water |
| Operating Pressure Differential - Minimum | 5 psi Air/Inert Gas, Light Oil, Water |
| Item | Solenoid Valve |
| Application | Air Compressors, Car Wash Equipment, Industrial Water Control, Laundry Equipment, Pumps |
| Coil Enclosure | Watertight |
| Coil Insulation Class | F |
| Body Material | Brass |
| Electrical Connections | 1/2 in Conduit Hub |
| IP Rating | IP66 |
| Valve Design | 2-Way/2-Position |
| Standards | UL Listed |
| Response Time | 1 sec |
| Environmental Rating | Indoor, Outdoor |
| Operating Pressure Differential Steam - Maximum | Not Rated |
| Wattage | 6.1 W |
| Includes Seal | Yes |
| Fluid Temperature - Maximum | 180 Degrees F |
| Valve Positions | 2-Position |
| Operating Pressure Differential Light Oil - Minimum | 5 psi |
| Includes Coil | Yes |
| Operating Pressure Differential Light Oil - Maximum | 125 psi |
| Ambient Temperature - Minimum | 14 Degrees F |
| Thread Type | NPT |
| Ambient Temperature - Maximum | 140 Degrees F |
| Frequency | 50 Hz, 60 Hz |
| Operating Pressure Differential Water - Maximum | 125 psi |
| Mounting Orientation | Vertical |
| Operating Pressure Differential Hot Water - Maximum | Not Rated |
| NEMA Enclosure Rating | 1, 2, 3, 3S, 4, 4X |
| Operating Pressure Differential Water - Minimum | 5 psi |
| Coefficient of Volume (Cv) | 5 |
Description

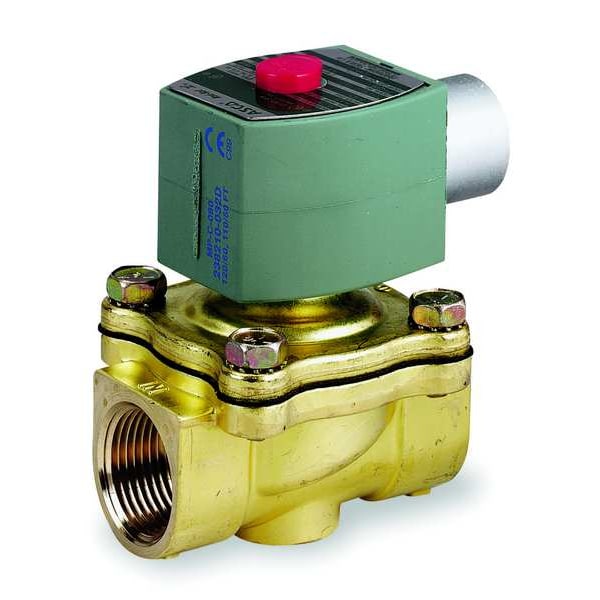

The Asco 8210G009 is a two-way, normally closed, pilot-operated high-flow solenoid valve with 3/4-inch NPTF connections. It operates on 120V AC and uses an NBR seal, with a minimum operating pressure differential of 5 psi and a maximum of 125 psi for air/inert gas, light oil, or water.
