- Ball Material: Chrome Plated Brass
- Pipe Size: 2 in
- Connection Size - Side 1: 2 in
- Connection Size - Side 2: 2 in
- Nominal Valve Size: 2 in
- Body Material: Bronze
Specifications
| Part Number | 8010801 |
| Brand | Apollo Valves |
| Ball Material | Chrome Plated Brass |
| Body Style | Inline |
| Ball Port Style | Full Port |
| Valve Ways | 2-Way |
| Valve Structure | Two-Piece |
| Pipe Size | 2 in |
| Overall Length | 4.68 in |
| Connection Size - Side 1 | 2 in |
| Connection Size - Side 2 | 2 in |
| Nominal Valve Size | 2 in |
| Handle Length | 5.5 in |
| Handle Height | 3.06 in |
| For Media | Natural Gas, Steam |
| Connection Type | FNPT x FNPT |
| Item | Gas Ball Valve |
| Body Material | Bronze |
| Features | Suitable for LP-Gas, Natural Gas, Flammable Liquid and Heating Oil |
| Max. Pressure | 250 PSI LP Gas, 600 PSI CWP |
| Standards | ASTM B584-C84400, Build America Buy America Act (BABA), Buy American Act (BAA), CRN |
| Handle Material | PVC, Zinc-Plated Steel |
| Handle Type | Lever |
| Temp. Range | -20 Degrees to 450 Degrees F |
| Ball Valve Product Group | Manual |
| Seat Material | PTFE |
| Stem Material | Brass |
| Compliance | MSS SP-110, UL Listed |
| Stem Type | Blowout Resistant |
| Seal Material | PTFE |
| Type | Two Piece, Gas |
| Operating Temperature - Minimum | -20 Degrees F |
| 3-A Standard Compliance | Not Rated |
| Connection Type - Side 2 | NPT |
| Handle - Locking | Non-Locking |
| Color - Valve Handle | Yellow |
| Cleaned and Bagged | Not Cleaned and Bagged |
| Color - Valve Body | Bronze |
| Maximum Pressure - Steam | 150 PSI WSP |
| Vacuum Service Rating | 29 in Hg |
| Coefficient of Volume (Cv) | 0.01 |
| Maximum Pressure - Combustible Gas | Not Rated |
| Connection Gender - Side 2 | Female |
| Connection Gender - Side 1 | Female |
| Meets UL Flammable Gas and Liquid Standards | UL 125, UL 1477, UL 842 |
| Connection Type - Side 1 | NPT |
| Operating Temperature - Maximum | 450 Degrees F |
| Valve Series | 80 |
Description

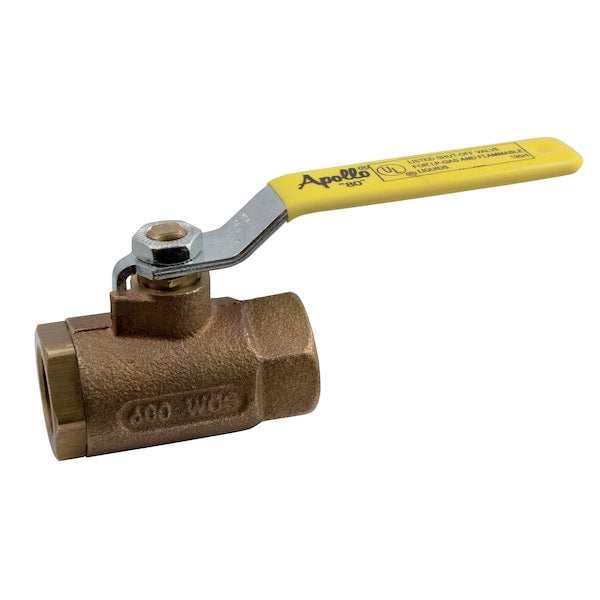

The Apollo Valves 8010801 is a 2-inch FNPT bronze gas ball valve. This inline valve controls the flow of LP-gas, natural gas, flammable liquids, or heating oil, with a maximum pressure rating of 250 PSI for LP gas and 600 PSI CWP.
