- Voltage: 24
- Amps AC: 1 A
- Control Voltage: 24V AC
- Input Voltage: 24V AC
- Minimum Operating Temperature: -40 Degrees F
- Frequency: 50/60 Hz
Specifications
| Part Number | 780-845 |
| Brand | Schneider Electric |
| Electrical Ratings | 24V AC |
| Voltage | 24 |
| Prepurge Time (Sec.) | 360 sec |
| Amps AC | 1 A |
| Type | Intermittent Pilot Ignition |
| Depth | 34 in |
| Overall Depth | 34 in |
| Item | Ignition Control |
| Bracket | Universal |
| Gas Type | LP/NG |
| Control Volts | 24 V |
| Electrical Connections | 1/4 in Quick Connect |
| For Use With | Residential, Commercial Heating Equipment |
| Includes | Diagnostic LED |
| Retries | 3 |
| Standards | cCSAus |
| Product Type | Ignition Control |
| Lock Out Time | 90 sec |
| Pre-Purge Time | 6 min |
| Control Voltage | 24V AC |
| Pilot Valve Current Output | 1 A |
| Input Voltage | 24V AC |
| Ignition Cycle Time | 90 seconds |
| Maximum Input Current | 1.5 A |
| Main Valve Current Output | 1 A |
| Minimum Operating Temperature | -40 Degrees F |
| Frequency | 50/60 Hz |
| Automatic Reset Time | 1 hr |
| Series | 780 |
| Compatible with Brand | See full list of Compatible with Brand ACM Email,Acme Industries,Acme Miami,Acme National,Acro,Addison,Addressograph,Adhesive Machining,Admiral,Adrian Steel,Advanced Machine,Aerovent Fan & Equip,Air Comfort (Mcgraw),Airflow,Binet,Blissfiel,Bradford-White,Brown Stove,Cabell,Catalina,Cavalier,Cemco,Chamberlain,Chicago Dryer,Circle Steel Corporation,Climate Master,Collectramatic,Columbus Showcase,Comfortmaker,Cubec,Custom Made Products,Cutler Hammer,D.P.D. Mfg. Company,Dacor,Dairy Equipment,Dallas Hermetic,Davis Products,Davmor Industries,Davmor Prod System,Dawn Equipment,Dayton,DCA Food,De Laval Separator,Dean,Dearborn,Decatur Works,Deepfreeze,Deering,Delanair Engineering,Delco,Delfield (Alco Food),Delmonico,Dentsply,Despatch Industries,Detrol Miller-Harris,Dexter,Dextrex Chemical,DI-EL,Digistat,Discovery Canada,Dixie,Dixon,Doboy Packaging,Dole Refrigeration,E-Tech,Eaton,Economics Lab,Ed PAC/AC,Edison,Eisco Limited,Electric Heaters,Electric Motor Serv,Electric Switch,Electro Freeze,Electro-Home,Electro-Therm,Electromode,Elixier,Elkay,Ellis & Watts,Elmet,Embassy Industries,Ember/Glow,Emerson,Essick,Evans,Evcon Air Pro,Garland,General Steel Wares,Henney Penney,Hydro-Matic Pump,Illinois Range,Internat Harvester,International,Johnson Controls,Johnstone Supply,Kaico Vending,Keeprite Products,Kellogg-American,Koehring Construction,Kold Pack,Koldair,Kool-Fire,Leeds & Northrup,Leemco,Lennox,Lincoln Food Service,Nova Controls,Pitco,Robertshaw,Uni-Line,White-Rodgers |
| Flame Sensor Current Output | 0.7 mA |
| Number of Retries | 3 |
| Compatible with Series | Universal |
| Thermostat Anticipator Setting | Thermostat Anticipator |
| Replacement Type | Universal |
| Electrical Connection Type | 1/4 in Quick-Connect |
| For Fuel Type | LP, Natural Gas |
| Maximum Operating Temperature | 175 Degrees F |
Description

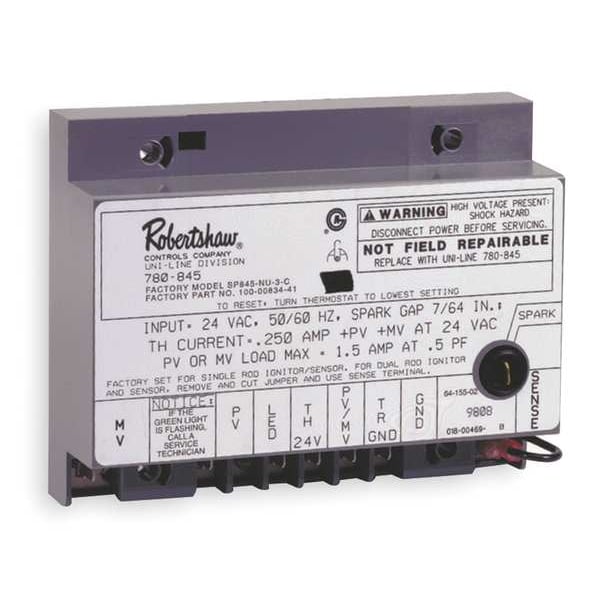

The Schneider Electric 780-845 is an intermittent pilot ignition control module. This ignition module provides a 24V AC signal to ignite the pilot burner for LP or natural gas systems. It is designed for use with residential and commercial heating equipment.
