- Voltage: 24
- Pressure Setting Range (In. WC): 3.5
- Amps AC: 1.5 A
- Frequency: 50/60 Hz
- Input Voltage: 24V AC
- Minimum Operating Temperature: -40 Degrees F
Specifications
| Part Number | 780-715 |
| Brand | Robertshaw |
| Voltage | 24 |
| Pressure Setting Range (In. WC) | 3.5 |
| Width | 4 3/4 in |
| Retries | Continuous |
| Control Volts | 24 V AC |
| Height | 3 in |
| Depth | 1 1/2 in |
| Overall Depth | 1 1/2 in |
| Overall Width | 4 3/4 in |
| Overall Height | 3 in |
| Item | Ignition Control |
| Gas Type | NG/LP |
| Electrical Connections | Terminals |
| For Use With | 7000 BDER, 7100 DER and 7200IPER Gas Valves |
| Amps AC | 1.5 A |
| Type | Spark Ignition, Nonlockout |
| Electrical Ratings | Combined Load 1.5 at .4 PF, Flame Sensor Current .7 mA DC @ 25C / 24V AC, Main valve 1 amp at .5 PF, Pilot valve 1 amp at .5 PF |
| Product Type | Ignition Control |
| Number of Retries | 3 |
| OEM Replacement Part Number | See full list of OEM Replacement Part Number 00018-03930,0384-015,05-02-00244,100-00801-01,100-00808-01,100-00808-02,100-00808-03,100-00808-06,100-00808-11,100-00821-01,100-00821-02,100-801-01,100-808-01,100-808-02,100-808-03,100-808-06,100-808-11,100-821-01,100-821-02,1100-225,13130417-01,150140-05-01,1501402601,1781901,1803931,28,2874,32028,32043,35736-00,36524B001,36524B001S,4E398,50D50-843,511330231,57P40,5H71913B,600963,62-21747-01,62-21747-02,63534,661401,780-715U,780-71E,78070,8900-657H,92406,B1370720,E087105,H350IGN,H8900657H,L37-297,P28740,RLY1010,S03-00403,S8610A1009,S8610F1008,S8610F1016,SP715,SP715A,SP715U,SP715Z,USI 715U,WG37X0023 |
| Ignition Cycle Time | 90 seconds |
| Compatible with Series | Universal |
| Flame Sensor Current Output | 0.7 mA |
| Frequency | 50/60 Hz |
| Series | 780 |
| Main Valve Current Output | 1.5 A |
| Input Voltage | 24V AC |
| Compatible with Brand | See full list of Compatible with Brand A.O. Smith,A.R.A. Mfg. Co.,Alko Scientific,Amana,American Burner Corp,American Instrument,Balyon,Barbeque King,Barkow,Bernz-O-Matic,Blanchard-Ness,C.E.T. / France,Carter Hoffman,Cary,Cecilware/Commodore,Cleaver Brooks,Cleveland Controls,Climate Control,Controls Of America,Corox,Craig Systems,Fawn Engineering,Fedders,Honeywell,Howard,Hummer,Hunter,Hupp Typhoon A/C,Indeeco,Inland Manufacturing,Intercole Automation,International Carbon,International Frezze,International Oil,Johnson Gas Appliance,Johnstone Supply,Juliette,Keronite,Kruger,Lab Equipment,Larco,Larkin Coils,Lennox,Lern,Liquid Carbonic,Robertshaw,The Hotsy Company,Uni-Line,Westward,White-Rodgers |
| Minimum Operating Temperature | -40 Degrees F |
| Pre-Purge Time | 6 min |
| Control Voltage | 24V AC |
| Replacement Type | Universal |
| Maximum Operating Temperature | 175 Degrees F |
| Electrical Connection Type | Screw Terminals |
| For Fuel Type | LP, Natural Gas |
| Thermostat Anticipator Setting | Thermostat Anticipator |
Description

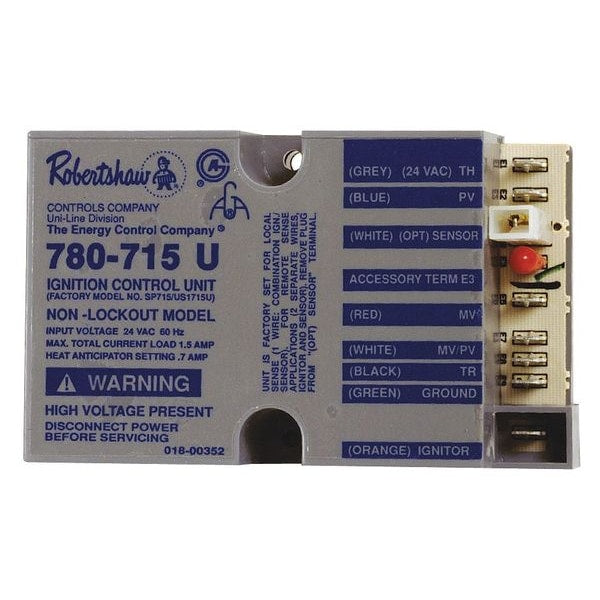

The Robertshaw 780-715 is a spark ignition, nonlockout ignition control module. This part generates a spark to ignite the gas and continues attempting ignition if the flame is lost, rather than locking out. It operates on 24 VAC and 1.5 Amps, is compatible with natural gas (NG) or liquid propane (LP), and is designed for use with 7000 BDER, 7100 DER, and 7200IPER gas valves.
