- Operating Voltage: 115VAC
- Bezel Face Size: 2.84 in dia.
- Overall Diameter: 2 7/8 in
- Cutout Diameter: 2 1/4 in
- Bezel Face Diameter: 2 7/8 in
- Material of Construction: Lexan
Specifications
| Part Number | 710-0002 |
| Brand | Redington |
| Display Type | Electromechanical |
| Reset Type | No Reset |
| Display Units | Hours |
| Number of Digits | 6 |
| Operating Voltage | 115VAC |
| Bezel Face Size | 2.84 in dia. |
| Width | 2.84 in |
| Overall Diameter | 2 7/8 in |
| Cutout Diameter | 2 1/4 in |
| Bezel Face Diameter | 2 7/8 in |
| Item | Hour Meter |
| Time Range | 0 to 99999.9 |
| Bezel Face Shape | Round |
| Bezel Face Type | Panel Mount |
| Terminal Type | Terminal Block |
| Input Type | 115 VAC, 230 VAC, 24 VAC, 50 Hz, 60 Hz |
| Material of Construction | Lexan |
| Hz | 60 Hz |
| Ambient Temp. Range | -20 Degrees to 160 Degrees F |
| Temp. Range | -20 Degrees to 160 Degrees F |
| Fits Panel Cut Out | 2.21 in dia. |
| Elapsed Time To | 99,999.9 |
| Mounting Method | Screw |
| Standards | CE, RoHS, UL |
| Reset Option | Manual Reset, Non-Reset |
| Input | 115V AC, 230V AC, 24V AC, 50Hz, 60Hz |
| Timer Type | Hour Meter |
| Power Type | Electro-Mechanical |
| Housings | 3-Hole |
| Certifications | CE, ROHS, UL |
| Digits | 5 Digits, 6 Digits |
| Input Voltage - Maximum | 115 V AC |
| Includes Mounting Hardware | Included |
| Input Voltage - Minimum | 90 V AC |
| Operating Temperature - Maximum | 160 Degrees F |
| Mount Securing Method | 3-Hole |
| Mounting Style | Panel |
| Operating Temperature - Minimum | -20 Degrees F |
| Display Span - Maximum | 99,999.9 |
| Counter Display Type | Analog |
Description

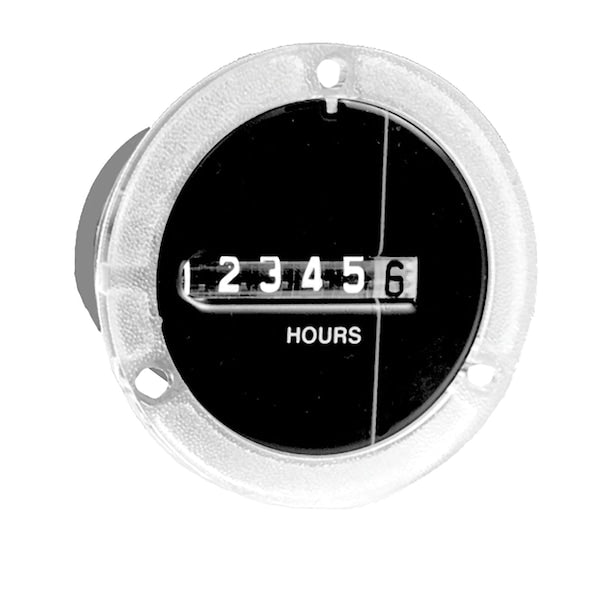

The Redington 710-0002 is an electromechanical hour meter with a Lexan construction. This non-reset meter records operating hours when powered by a 115VAC input, connecting via a terminal block for panel-mount installation.
