- Operating Voltage: 115VAC
- Bezel Face Size: 2.84 in
- Bezel Face Diameter: 2 7/8 in
- Overall Diameter: 2 7/8 in
- Cutout Diameter: 2 1/4 in
- Ambient Temp. Range: 20 Degrees F to +160 Degrees F
Specifications
| Part Number | 710-0001 |
| Brand | Redington |
| Display Type | Electromechanical |
| Reset Type | No Reset |
| Display Units | Hours |
| Number of Digits | 6 |
| Operating Voltage | 115VAC |
| Bezel Face Size | 2.84 in |
| Width | 2.4 in |
| Depth | 2.4 in |
| Bezel To Back Length | 1.98 in |
| Length | 2.4 in |
| Bezel Face Diameter | 2 7/8 in |
| Overall Diameter | 2 7/8 in |
| Cutout Diameter | 2 1/4 in |
| Overall Depth | 2 3/8 in |
| Item | Hour Meter |
| Time Range | 99999.9 |
| Bezel Face Shape | Round |
| Bezel Face Type | 3-hole Round Mount |
| Ambient Temp. Range | 20 Degrees F to +160 Degrees F |
| Elapsed Time To | 1 |
| Fits | 2.21 in Opening |
| Terminal Type | Not Available |
| Hz | 60 Hz |
| Mounting Method | 3-Hole |
| Fits Panel Cut Out | 2.21 in |
| Input Type | 115VAC |
| Standards | CE, RoHS, UL |
| Temp. Range | -20 Degrees to 160 Degrees F |
| Input | 115V AC, 230V AC, 24V AC, 50Hz, 60Hz |
| Reset Option | Manual Reset, Non-Reset |
| Digits | 5 Digits, 6 Digits |
| Housings | 3-Hole |
| Power Type | Electro-Mechanical |
| Certifications | CE, ROHS, UL |
| Timer Type | Hour Meter |
| Operating Temperature - Minimum | -20 Degrees F |
| Input Voltage - Maximum | 115 V AC |
| Counter Display Type | Analog |
| Display Span - Maximum | 99,999.9 |
| Mount Securing Method | 3-Hole |
| Includes Mounting Hardware | Included |
| Operating Temperature - Maximum | 160 Degrees F |
| Input Voltage - Minimum | 90 V AC |
| Mounting Style | Panel |
Description

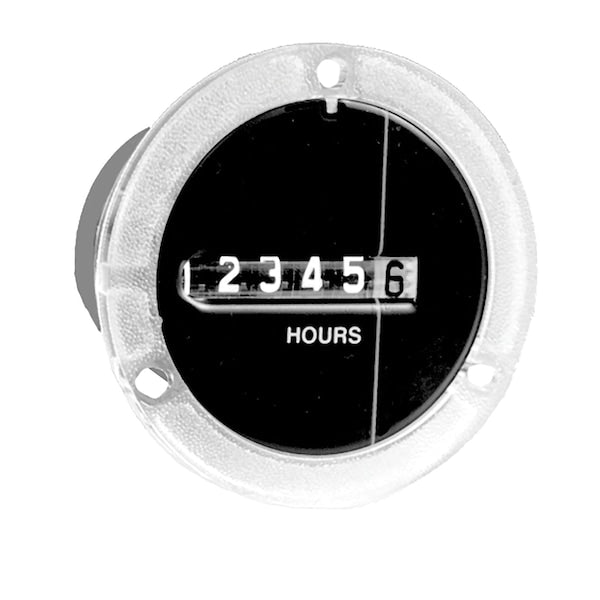

The Redington 710-0001 is an electromechanical hour meter. This type of part records the total operating time of the equipment to which it is connected. It operates at 115VAC and 60 Hz, with an ambient temperature range of 20°F to +160°F.
