- Coupling Size: L225
- Maximum Operating Temperature: 212 Degrees F
- Spider Material: Rubber
- Outside Diameter: 4 63/64 in
- Minimum Operating Temperature: -40 Degrees F
- Horsepower @ 100 RPM: 3.7
Specifications
| Part Number | 68514412409 |
| Brand | Lovejoy |
| Coupling Size | L225 |
| Color | Black |
| Maximum Operating Temperature | 212 Degrees F |
| Standards | ANSI B92.1A, ANSI/AGMA 9002-B04, ANSI/AGMA 9112-A04, DIN 5480 |
| Spider Material | Rubber |
| Spider Width | 0.88 in |
| Outside Diameter | 4 63/64 in |
| Item | Jaw Coupling Insert |
| Resistance Properties | Oil Resistant |
| Durometer Hardness | 80A |
| Angular Misalignment | 1 Degrees |
| Weight | 0.38 lb |
| System of Measurement | Inch |
| Parallel Misalignment | 0.15 in |
| Minimum Operating Temperature | -40 Degrees F |
| For Misalignment Type | Angular, Parallel |
| Spider Type | Solid Center Spider |
| Horsepower @ 100 RPM | 3.7 |
| Maximum Torque | 2,340 in-lb |
| Maximum Speed | 1,750 RPM |
Description

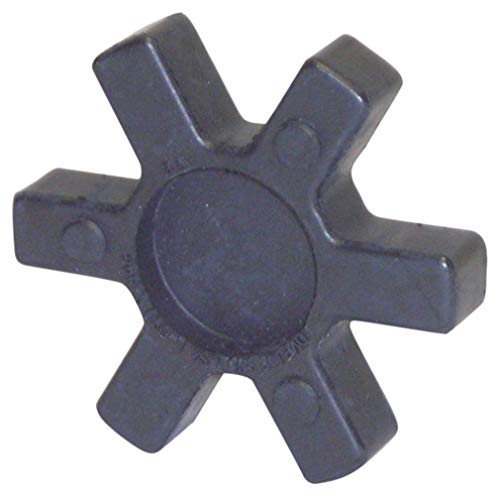

The Lovejoy 68514412409 is a jaw coupling insert with a solid center rubber spider. This insert transmits torque between two coupling halves while accommodating angular and parallel misalignment. It is rated for 3.7 horsepower at 100 RPM and operates from -40 to 212 degrees F, meeting ANSI B92.1A, ANSI/AGMA 9002-B04, ANSI/AGMA 9112-A04, and DIN 5480 standards.
