- Pressure Range (In. WC): 0 to 1
- Process Connection Size: 1/8 in, 1/4 in
- Process Connection Size - Transmitter: 1/8 in
- Operating Temp. - Transmitter: 0 Degrees to 140 Degrees F
- Wetted Materials - Transmitters: Stainless Steel
- Wetted Materials: Stainless Steel
Specifications
| Part Number | 616KD-00 |
| Brand | Dwyer Instruments |
| Pressure Range (In. WC) | 0 to 1 |
| Accuracy | +/-2% of Full Scale |
| Output | 4 to 20mA DC |
| Power Required | 10 to 35V DC (2 Wire), 12 to 26V AC (4 Wire) |
| Process Connection Type | Hose Barb |
| Process Connection Size | 1/8 in, 1/4 in |
| Process Connection Size - Transmitter | 1/8 in |
| Overall Length | 1.03 in |
| Overall Width | 2.4 in |
| Item | Differential Transmitter |
| Operating Temp. - Transmitter | 0 Degrees to 140 Degrees F |
| Series | 616KD |
| Standards | CE, UL Listed |
| Transmitter Type | Differential Transmitter |
| Output - Transmitter | 4 to 20mA DC |
| Loop Resistance | DC at 1000 ohms Max, AC at 1200 ohms Max |
| Power Required - Transmitters | 16 to 35V DC |
| Range Values - Transmitter | 0 to 1 |
| Connection | Barbed,Dual Size to Fit 1/8" and 3/16" (3 mm & 5 mm) ID Rubber or Vinyl Tubing |
| Wetted Materials - Transmitters | Stainless Steel |
| Range Units - Transmitter | in wc |
| Includes | Instruction Manual |
| Process Connection Type - Transmitter | Hose Barb |
| Output Accuracy | +/-2% Full Scale |
| Accuracy - Transmitter | +/-2.00% Full Scale |
| Electrical Connections - Transmitter | Screw Terminals |
| Wetted Materials | Stainless Steel |
| Features | Push-Button Sets Back Zero and Span |
| Thermal Error | +/-0.06% |
| NEMA Rating | NEMA 1 |
| Electrical Connections | Screw Terminals |
| Minimum Pressure | 0 in wc |
| IP Rating | IP20 |
| Process Connection Gender | Male |
| Overpressure | 2 psig |
| Weight | 1.8 oz |
| NIST Traceable Certificate | No |
| Pressure Units | in wc |
| Number of Wires | 2, 4 |
| Maximum Loop Resistance | 4 to 20 mA Output (DC): 1250 Ohm; 4 to 20 mA Output (AC): 1200 Ohm |
| Maximum Pressure | 1 in wc |
| Maximum Operating Temperature | 140 Degrees F |
| Minimum Operating Temperature | 0 Degrees F |
| Pressure Measurement - Maximum | 1 in wc |
| Process Media Temperature - Maximum | 140 Degrees F |
| Output Power | 4 to 20mA DC |
| Input Voltage | 10 to 35V DC (2 Wire), 12 to 26V AC (4 Wire) |
| NEMA Enclosure Rating | 1 |
| Process Media Temperature - Minimum | 0 Degrees F |
| Loop Resistance - Maximum | 4 to 20 mA Output (DC): 1250 Ohm; 4 to 20 mA Output (AC): 1200 Ohm |
| Includes NIST-Traceable Calibration Certificate | No NIST-Traceable Calibration Certificate Included |
| Pressure Measurement - Minimum | 0 in wc |
Description

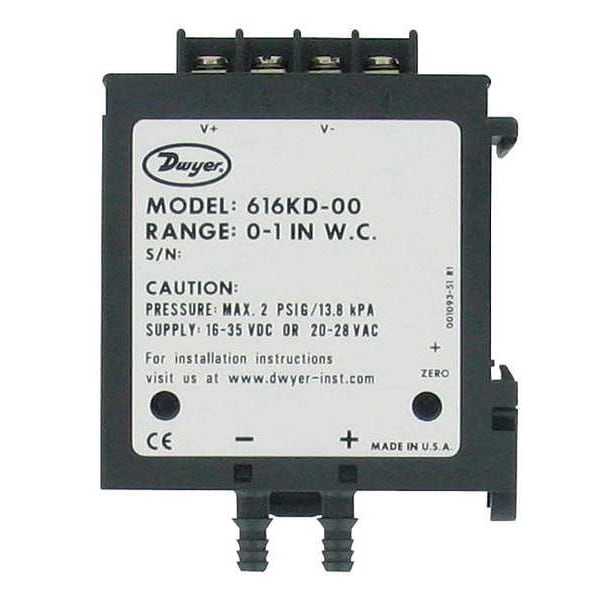

The Dwyer Instruments 616KD-00 is a differential pressure transmitter. This type of sensor converts a differential pressure reading into a standard 4-20 mA output signal. It has a pressure range of 0 to 1 inch WC and is CE and UL Listed.
