- Inlet Size: 1"
- Outlet Size: 1 1/4"
- Body Material: Bronze
- Inlet Connection Size: 1 in
- Outlet Connection Size: 1 1/4 in
- Spring Material: Stainless Steel
Specifications
| Part Number | 6010FEE01AAM0150 |
| Brand | Kunkle Valve |
| Inlet Size | 1" |
| Outlet Size | 1 1/4" |
| Body Material | Bronze |
| Outlet Type | FNPT |
| Inlet Type | MNPT |
| Overall Length | 4 in |
| Overall Height | 8 1/2 in |
| Inlet Connection Size | 1 in |
| Outlet Connection Size | 1 1/4 in |
| Item | Safety Relief Valve |
| Standards | ASME Code V |
| Spring Material | Stainless Steel |
| Test Lever | Test Lever Included |
| Factory Set Pressure | 150 psi |
| Application | Air/Gas Compressors, Intercoolers and Aftercoolers, Pressure Reducing Stations, Pressure Vessels-Containing Steam, Steam Boilers and Generators, Tanks, Receivers, Sterilizers and Autoclaves |
| Seat Material | EPR |
| Disc Material | Brass |
| Temp. Range | -60 Degrees to 406 Degrees F |
| Product Type | Safety Relief Valve |
| Operating Temperature - Maximum | 425 Degrees F |
| Operating Pressure - Minimum | 18 psi |
| Outlet Connection Gender | Female |
| ASME Section Code | Section I |
| For Media | Steam |
| Operating Temperature - Minimum | -60 Degrees F |
| Inlet Connection Gender | Male |
| Outlet Connection Type | NPT |
| Operating Pressure - Maximum | 264 psi |
| Inlet Connection Type | NPT |
Description

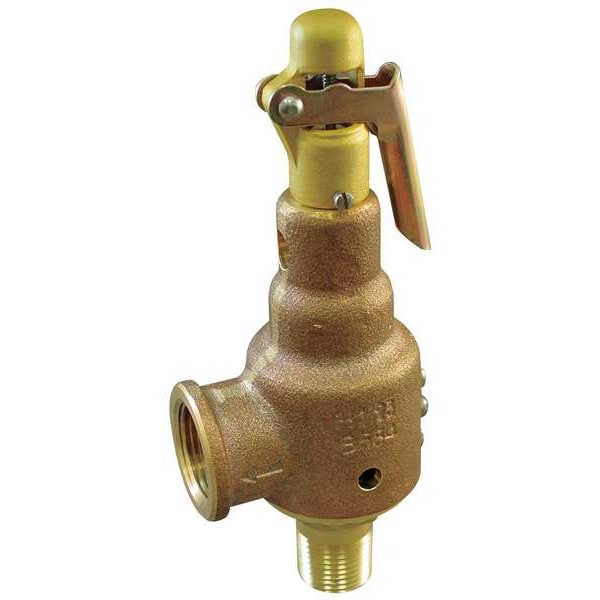

The Kunkle Valve 6010FEE01AAM0150 is a safety relief valve constructed with a bronze body and a stainless steel spring. This type of valve automatically opens to relieve excess pressure, protecting equipment from overpressure conditions. It is designed to meet ASME Code V standards.
