- Connection Type/Size: (F)NPT 1/2
- Port Connection Size: 1/2 in
- Max. Water Temp. (Deg. F): 250 Degrees F
- Operating Temperature - Minimum: 35 Degrees F
- Trim Material: Brass
- Operating Temperature - Maximum: 250 Degrees F
Specifications
| Part Number | 59902034 |
| Brand | Siemens |
| Type | Globe |
| For Use With | Water |
| Agency Compliance | UL |
| Width | 2 3/4 in |
| Coefficient of Volume | 1 |
| Height | 2 1/4 in |
| Connection Type/Size | (F)NPT 1/2 |
| Depth | 1 5/16 in |
| Overall Height | 3 1/16 in |
| Port Connection Size | 1/2 in |
| Overall Length | 2 3/4 in |
| Overall Depth | 1 9/16 in |
| Item | Hydronic Globe Valve |
| Max. Water Temp. (Deg. F) | 250 Degrees F |
| Specifications | Brass Trim, Globe Valve, MT Series |
| Includes | Control Valve |
| Leakage Rate | 0.01% |
| Port Connection Gender | Female |
| For Media | Water, Water-Glycol Solution to 50% |
| Configuration | Straight-Thru |
| Body Pattern | Two-Way |
| Port Connection Type | NPT |
| Operating Temperature - Minimum | 35 Degrees F |
| Trim Material | Brass |
| Operating Temperature - Maximum | 250 Degrees F |
| ANSI Rating | ANSI Class 250 |
| Stem Travel | 7/32 in |
| Gasket Material | Ethylene Propylene |
| Installation Orientation | Versatile |
| Body Material | Brass |
| Rangeability | Greater Than50:1 |
| Coefficient of Volume (Cv) | 1 |
| Packing Material | Ethylene Propylene |
| Includes Actuator | Actuator Not Included |
| Valve Action | Normally Open |
| Flow Characteristic | Equal Percentage |
| Manufacturer Series | MT |
| Stem Material | Stainless Steel |
| Close-Off Pressure | 160 psi |
| Seat Material | Stainless Steel |
Description

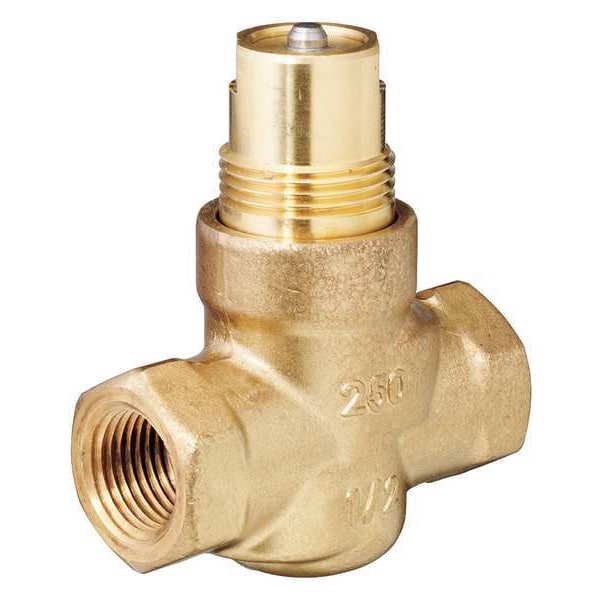

The Siemens 59902034 is a hydronic globe valve, specifically a normally open control valve with a 1.0 Cv flow coefficient. This globe valve regulates the flow of water in a hydronic system, and it features a 1/2-inch female NPT connection with a maximum water temperature rating of 250 degrees Fahrenheit.
