- For Inlet Pipe Diameter: 3/4 in, 1 in, 1 1/4 in, 1 1/2 in
- Phase: Single
- Impeller Material: Composite
- Horsepower: 1/25 hp
- Nameplate Voltage: 115V AC
- Frequency: 60 Hz
Specifications
| Part Number | 59896341 |
| Brand | Grundfos |
| Overall Length | 6.54 in |
| Face to Face Dimension | 6 17/32 in |
| Manufacturer Warranty Length | 3 yr |
| For Inlet Pipe Diameter | 3/4 in, 1 in, 1 1/4 in, 1 1/2 in |
| Overall Height | 5.24 in |
| Item | Circulating Pump |
| Phase | Single |
| Impeller Material | Composite |
| Horsepower | 1/25 hp |
| Maximum Flow Rate @ 5 Feet of Head | 13 gpm |
| Maximum Flow Rate @ 10 Feet of Head | 9 gpm |
| Maximum Flow Rate @ 15 Feet of Head | 4 gpm |
| Nameplate Voltage | 115V AC |
| Standards | CSA Certified, UL Listed |
| Series | UPS |
| Number of Speeds | 3 |
| Frequency | 60 Hz |
| Motor Design | Permanent Split Capacitor |
| Flow Rate - Maximum | 17 gpm |
| Full Load Current | 0.55 A (Speed 1); 0.66 A (Speed 2); 0.75 A (Speed 3) |
| Priming | Self-Priming |
| Includes Union | No Union Included |
| Feet of Head - Maximum | 19 ft |
| Application | Circulating |
| Pump Construction | 2-Piece |
| Electrical Connection Type | Hardwired |
| For Media Type | Clear Water |
| Pump Casing Material | Cast Iron |
| Number of Flange Mounting Holes | 2 |
| Includes Timer | No Timer Included |
| Includes Volute | Volute Included |
| Media Temperature - Minimum | 35.6 Degrees F |
| ANSI Flange Class | Class 150 |
| Pump Technology | Centrifugal |
| Connection Standard | Flange |
| Rotor Type | Wet |
| For Low Lead Compliance Level | CE |
| Thermostat Included | No Thermostat Included |
| Media Temperature - Maximum | 230 Degrees F |
| Motor Enclosure Design | Totally Enclosed Non-Ventilated |
| Operating Pressure - Maximum | 145 psi |
| Mounting Orientation | Horizontal, Vertical |
| Number of Pump Heads | 1 |
| Includes Flange | No Flange Included |
Description

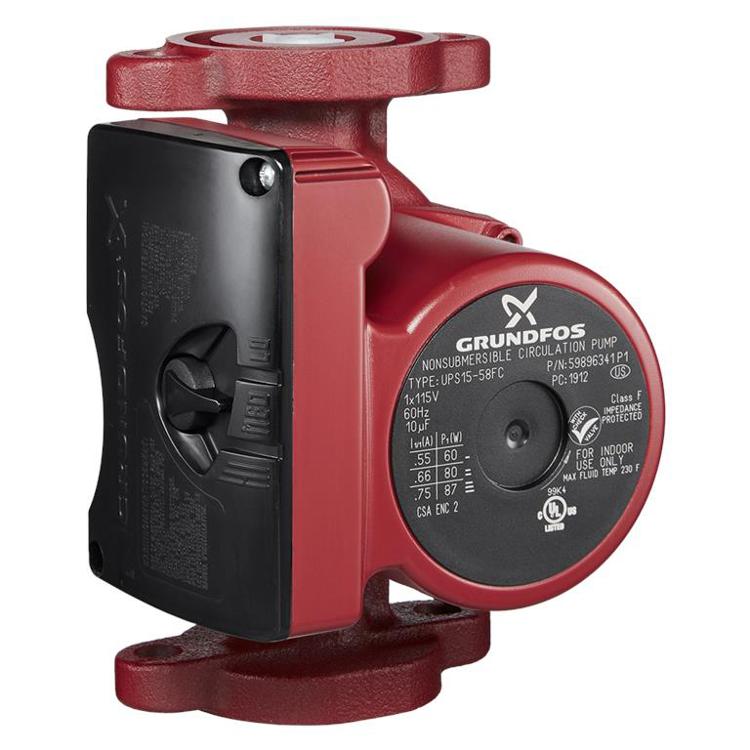

The Grundfos 59896341 is a UPS15-58FC circulating pump with a 1/25 hp motor and single-phase 115V AC operation. This pump circulates fluid through a closed loop system, using a composite impeller to achieve flow rates of 13 gpm at 5 feet of head, 9 gpm at 10 feet, and 4 gpm at 15 feet.
