- Compatible Discharge Pipe Size: 1/4 in
- For Discharge Pipe Diameter: 1/4 in
- For Inlet Pipe Diameter: 1 in
- Amps: 0.18 A
- Tank Material: Plastic
- Nameplate Voltage: 110-240V AC
Specifications
| Part Number | 553527 |
| Brand | Rheem |
| Cord Length | 4.9 ft |
| Application | Condensate Removal |
| Includes | Inlet Filter, Undermount Cover |
| Standards | cCSAus, CE |
| Pump Type | Mini-Split |
| Overall Height | 2.19 in |
| Overall Width | 2.31 in |
| Overall Length | 11.12 in |
| Compatible Discharge Pipe Size | 1/4 in |
| Manufacturer Warranty Length | 3 yr |
| For Discharge Pipe Diameter | 1/4 in |
| For Inlet Pipe Diameter | 1 in |
| Item | Condensate Removal Pump |
| Amps | 0.18 A |
| Tank Material | Plastic |
| Maximum Flow Rate @ 20 Feet of Head | 1.25 gph |
| Series Family | EC |
| Maximum Flow Rate @ 1 Feet of Head | 2.5 gph |
| Nameplate Voltage | 110-240V AC |
| Shut Off Level | 0.37 in |
| Maximum Flow Rate @ 5 Feet of Head | 1.8 gph |
| Compatible Media Type | Water |
| Frequency | 50/60 Hz |
| Maximum Ambient Temperature | 140 Degrees F |
| Series | EC-1-DV |
| Maximum Operating Pressure | 26 psi |
| Minimum Ambient Temperature | 32 Degrees F |
| Maximum Flow Rate @ 10 Feet of Head | 1.5 gph |
| Maximum Feet of Head | 20 ft |
| Discharge Connection Style | Barbed |
| Tank Capacity | 0 gal |
| Maximum Flow Rate @ 15 Feet of Head | 1.5 gph |
| Plenum Rated | No |
| Intake Connection Style | Open |
| Turn On Level | 0.45 in |
| Maximum Flow Rate @ 25 Feet of Head | 1.1 gph |
| Maximum Media Temperature | 140 Degrees F |
| Maximum Flow Rate @ 30 Feet of Head | 1 gph |
| Ambient Temperature - Maximum | 140 Degrees F |
| Operating Pressure - Maximum | 26 psi |
| Number of Inlets | 1 |
| Feet of Head - Maximum | 33 ft |
| Tank Opacity | Translucent |
| For HVAC System Duct | Ductless |
| Phase | Single |
| Includes Safety Switch | No Safety Switch Included |
| Installation | Pedestal-Mount |
| Inlet Standard | Open |
| Power Source | Corded Electric |
| Product Type | Mini-Split Condensate Removal Pump |
| Priming | Self-Priming |
| Ambient Temperature - Minimum | 32 Degrees F |
| Pump Technology | Centrifugal |
| Discharge Standard | Barbed |
| Full Load Current | 0.18 A |
| For Media Type | Clear Water |
| Electrical Connection Type | Hardwired |
| Media Temperature - Maximum | 140 Degrees F |
| Includes Tubing | Tubing Included |
| Pump Activation Type | Electrically Activated |
| Media Temperature - Minimum | 33 Degrees F |
Description

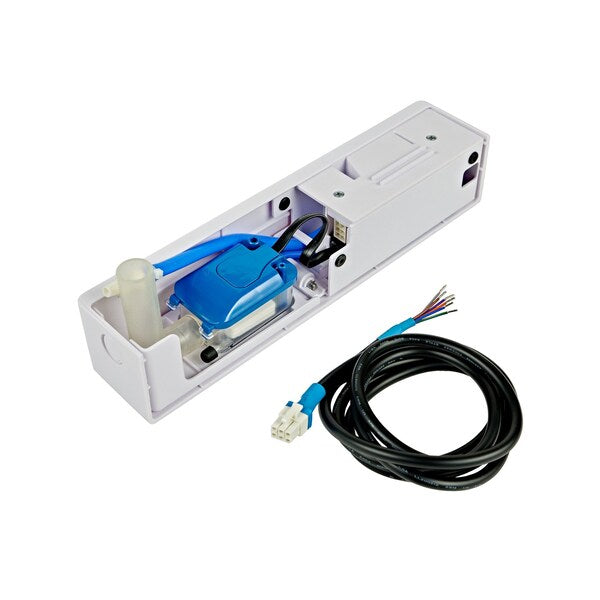

The Rheem 553527 is a mini-split condensate removal pump. This type of pump automatically removes condensate water from an air conditioning system. It includes an inlet filter and undermount cover, is constructed with a plastic tank, and draws 0.18 A. It is cCSAus and CE listed.
