- Housing Material: Cast Iron or Bronze
- HP: 3/10
- Hz: 60 Hz
- Diameter: 10-3/32"
- Max. Diameter Solids: 1/2 in
- Body Diameter: 10 1/8 in
Specifications
| Part Number | 53-0001 |
| Brand | Zoeller |
| Cord Length | 9 ft |
| Discharge NPT | 1-1/2" F |
| Housing Material | Cast Iron or Bronze |
| HP | 3/10 |
| Hz | 60 Hz |
| Manufacturers Warranty Length | 3 yr |
| Diameter | 10-3/32" |
| Max. Diameter Solids | 1/2 in |
| Max. Dia. Solids | 1/2" |
| Cord Length - Pumps | 9 ft. |
| Height | 10-1/16" |
| Min. Sump Pit Dia. | 18 in |
| Overall Height | 10 1/8 in |
| Body Dia. | 10 3/32 in |
| Discharge Dia. | 1 1/2 in |
| Body Diameter | 10 1/8 in |
| Sump Pit Diameter - Minimum | 18 in |
| Discharge Diameter | 1 1/2 in |
| Solids Diameter - Maximum | 1/2 in |
| Width at Widest Point | 10 1/8 in |
| Impeller Material | Plastic/Metal |
| Max. Head | 19 ft |
| Max. Temp. | 130 Degrees F |
| Motor RPM | 1550 |
| Motor Type | Thermally Protected |
| Shaft Seal | Carbon/Ceramic |
| Voltage | 115V |
| Phase | Single |
| Pump Body Material | Cast Iron |
| On Point | 7 1/4 in |
| Item | Submersible Sump Pump |
| Switch Type - Pumps | Vertical |
| GPM of Water @ 10 Ft. of Head | 34 |
| Max. Liquid Temp. | 130 Degrees F |
| Amps - Pumps | 9.70 |
| Mechanical Seal | CRB/CMC |
| Amps | 9.7 A |
| GPM of Water @ 5 Ft. of Head | 43 |
| Thermal Protection | Auto |
| Switch Type | Vertical |
| Voltage - Pumps | 120VAC |
| Duty | Continuous |
| Off Point | 3 in |
| Features | Float Operated, Corrosion-Resistant, Powder Coated Epoxy Finish, Stainless Steel Screws, Switch Arm, Guard and Handle, Watertight Neoprene Square Ring Between Motor and Pump Housing, Entire Unit Pressure Tested After Assembly |
| Gauge/Conductor | 18/3 |
| GPM of Water @ 15 Ft. of Head | 19 |
| Base Material | Polypropylene |
| Impeller Material - Pumps | Polypropylene |
| NEC Cord Designation | SJTW |
| Max. Head - Pumps | 19 ft. |
| Alarm Included | No |
| Alarm | No |
| Item - Sump Pumps | Submersible Sump Pump |
| Shaft Seal Material - Pumps | Carbon, Ceramic |
| Application | Dewatering |
| Switch Actuation | Vertical Float |
| Discharge Standard | NPT |
| Discharge Gender | Female |
| Duty Cycle | Continuous |
| Flow Rate @ 5 Ft. of Head | 43 gpm |
| Switch Electrical Connection | Integral |
| Rated Voltage | 115V AC |
| Flow Rate @ 10 Ft. of Head | 34 gpm |
| Discharge | 1 1/2 in FNPT |
| Flow Rate @ 15 Ft. of Head | 19 gpm |
| RPM | 1,550 RPM |
| Body Material | Cast Iron |
| Standards | cCSAus, UL Listed |
| Impeller Design | Vortex |
| Hazardous Location Class | Not Rated |
| Volute Material | Cast Iron |
| Series | Model M53 |
| Horsepower | 3/10 hp |
| Installation | Submersible |
| Motor Housing Material | Cast Iron |
| Flow Rate @ 30 ft of Head | 0 gpm |
| Rotation Speed - Maximum | 1,550 RPM |
| Requires Control Panel | No Control Panel Required |
| Feet of Head - Maximum | 19 ft |
| Liquid Temperature - Maximum | 130 Degrees F |
| For Media Type | Clear Water |
| Operation | Automatic |
| Shaft Seal Type | Single Mechanical |
| Current | 9.7 A |
| Flow Rate @ 10 ft of Head | 34 gpm |
| Includes Alarm | No Alarm Included |
| Controls Included | No Controls Included |
| Shaft Seal Material | Carbon/Ceramic |
| For Industry | Residential |
| Power Source | Corded Electric |
| Frequency | 60 Hz |
Description

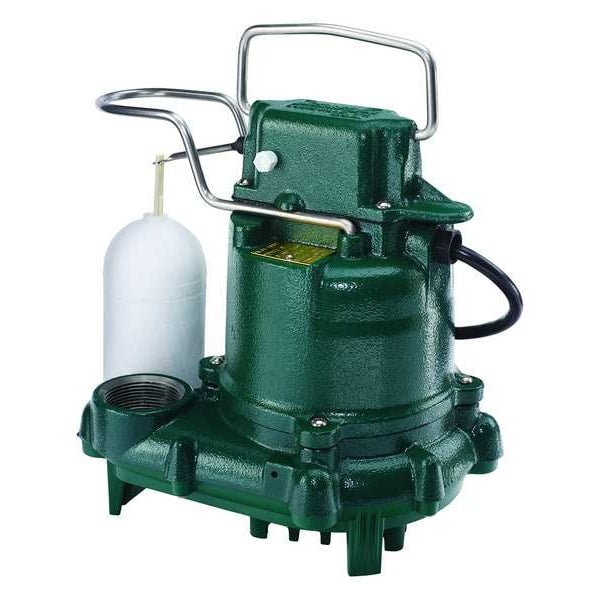

The Zoeller 53-0001 is a 3/10 HP submersible sump pump with a cast iron or bronze housing and a plastic/metal impeller. This type of pump removes accumulated water from a sump basin, operating at 115V, 60 Hz with a thermally protected motor at 1550 RPM and a maximum liquid temperature of 130°F. It features a 1 1/2 inch female discharge, a vertical float switch, a 34 gpm flow rate at 10 feet of head, and a 9-foot cord.
