- Voltage: 115V AC
- Phase: Single
- Horsepower: 1/6 hp
- Compatible Intake Pipe Size: 3/4 in, 1 in, 1 1/4 in, 1 1/2 in
- For Inlet Pipe Diameter: 3/4 in, 1 in, 1 1/4 in, 1 1/2 in
- Shaft Material: Ceramic
Specifications
| Part Number | 52722512 |
| Brand | Grundfos |
| Voltage | 115V AC |
| Phase | Single |
| Horsepower | 1/6 hp |
| Series | UPS |
| Pump Type | Multi-Speed |
| Face to Face Dimension | 6 1/2 in |
| Overall Length | 6 in |
| Compatible Intake Pipe Size | 3/4 in, 1 in, 1 1/4 in, 1 1/2 in |
| Overall Width | 6 in |
| Overall Height | 6.5 in |
| Manufacturer Warranty Length | 1 yr |
| For Inlet Pipe Diameter | 3/4 in, 1 in, 1 1/4 in, 1 1/2 in |
| Item | Hydronic Circulating Pump |
| Number of Speeds | 3 |
| Max. GPM @ Head | 33 gpm @ 28.87 ft |
| Maximum Feet of Head | 29 ft |
| Min. GPM @ Head | 0 gpm @ 28.87 ft |
| Connection Type | Flange |
| Compliance | CSA, UL |
| Shaft Material | Ceramic |
| Amps | 1.3/1.5/1.8 A |
| Includes | (2) Gaskets |
| Application | Circulating |
| Features | Pump With Built-in Isolating and Non-Return Valves, Residential Heating |
| Impeller Material | Composite/PES |
| Thermal Protection | Internal |
| Standards | ASTM 30 B, CSA Certified, EN-JL1030, UL Listed |
| Maximum Flow Rate @ 1 Feet of Head | 33 gpm |
| For Use With Potable Systems | No |
| Maximum Flow Rate @ 15 Feet of Head | 18 gpm |
| Maximum Media Temperature | 230 Degrees F |
| Maximum Flow Rate @ 5 Feet of Head | 28 gpm |
| Compatible Media Type | Water |
| Maximum Flow Rate @ 25 Feet of Head | 7 gpm |
| Maximum Flow Rate @ 20 Feet of Head | 13 gpm |
| Frequency | 60 Hz |
| Minimum Media Temperature | 35 Degrees F |
| Nameplate Voltage | 115V AC |
| Maximum Flow Rate @ 10 Feet of Head | 23 gpm |
| Flange or Union Included | No |
| Maximum Operating Pressure | 145 psi |
| Pump Housing Material | Cast Iron |
| Maximum Flow Rate @ 50 Feet of Head | [DELETE] |
| Electrical Connection Type | Hardwired |
| Number of Pump Heads | 1 |
| ANSI Flange Class | Class 150 |
| Flow Rate - Maximum | 33 gpm |
| Includes Volute | Volute Included |
| Feet of Head - Maximum | 29 ft |
| Priming | Self-Priming |
| Includes Union | No Union Included |
| Requires Dedicated Return Line | No Dedicated Return Line Required |
| Media Temperature - Maximum | 230 Degrees F |
| Pump Technology | Centrifugal |
| Operating Pressure - Maximum | 145 psi |
| Number of Flange Mounting Holes | 2 |
| Motor Enclosure Design | Totally Enclosed Non-Ventilated |
| Motor Design | Permanent Split Capacitor |
| Operating Modes | Constant Pressure |
| Full Load Current | 1.3/1.5/1.8 A |
| For Low Lead Compliance Level | CE |
| Includes Timer | No Timer Included |
| Thermostat Included | No Thermostat Included |
| Connection Standard | Flange |
| Media Temperature - Minimum | 35 Degrees F |
| Mounting Orientation | Horizontal |
| For Media Type | Clear Water |
| Rotor Type | Wet |
| Pump Casing Material | Cast Iron |
| Pump Construction | 2-Piece |
| Includes Flange | No Flange Included |
Description

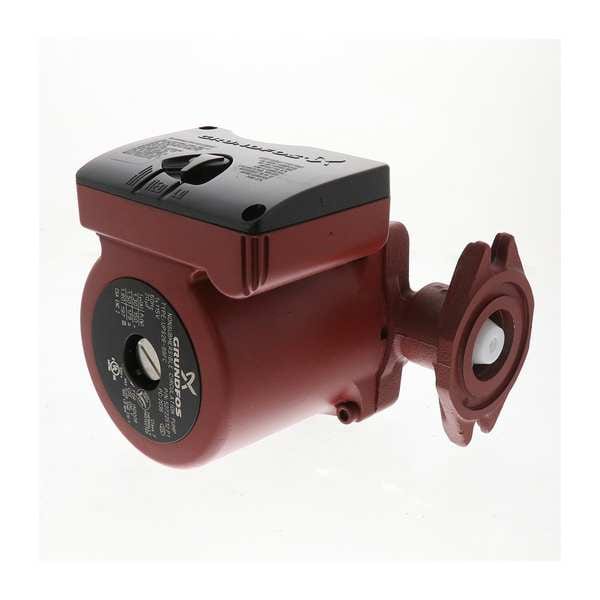

The Grundfos 52722512 is a UPS Series hydronic circulating pump with a 1/6 hp, single-phase, 115V AC motor. This multi-speed pump moves water in a closed hydronic system and connects via a flange, accepting intake pipe sizes from 3/4 in to 1 1/2 in.
