- Overall Length: 600 mm
- Overall Width: 28 mm
- Overall Height: 26 mm
- Rail Material: Steel
- Manufacturer Size: 30
- Number of Mounting Holes: 6
Specifications
| Part Number | 521H30A+600 |
| Brand | Thomson |
| Item | Profile Ball Rail |
| Overall Length | 600 mm |
| Overall Width | 28 mm |
| Overall Height | 26 mm |
| Rail Material | Steel |
| Manufacturer Size | 30 |
| Number of Mounting Holes | 6 |
| Rail Finish | Hardened Steel |
| Rail Type | Profile |
| System of Measurement | Metric |
| Standards | DIN 645-1 |
| For Use With | 500 Series Ball Carriages |
| Operating Temperature - Maximum | 176 Degrees F |
| Operating | Temperature - Minimum -40 Degrees F |
| Mounting Hole Center to Center | 80 mm |
| Mounting Hole Center to Shaft End | 20 mm |
| Mounting Hole Type | Threaded |
Description

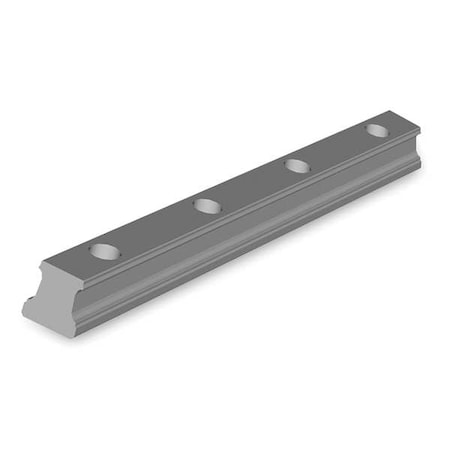

The Thomson 521H30A+600 is a steel profile ball rail with an overall length of 600 mm, width of 28 mm, and height of 26 mm. It has six threaded mounting holes, with 80 mm center-to-center spacing and 20 mm from center to shaft end. The rail has a hardened steel finish, is made to DIN 645-1, and is for use with 500 Series ball carriages.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
