- Inlet Size: 3/4 in
- Outlet Size: 3/4 in
- Outlet Connection Size: 3/4 in
- Inlet Connection Size - Cold: 3/4 in
- Inlet Connection Size - Hot: 3/4 in
- Body Material: Brass
Specifications
| Part Number | 5123-C2 |
| Brand | Taco |
| Inlet Size | 3/4 in |
| Outlet Type | Union Sweat |
| Flow Rate | 1 to 14 gpm |
| Inlet Type | Union Sweat |
| Overall Width | 5 25/64 in |
| Overall Height | 5 in |
| Outlet Size | 3/4 in |
| Overall Length | 5 3/8 in |
| Outlet Connection Size | 3/4 in |
| Inlet Connection Size - Cold | 3/4 in |
| Inlet Connection Size - Hot | 3/4 in |
| Item | Thermostatic Mixing Valve |
| Body Material | Brass |
| Inlet Temperature (Hot) | 120 Degrees to 180 Degrees F |
| Includes | Check Valves |
| Standards | ASSE 1017, ASSE 1070, CSA 125.3, cUPC Listed, NSF 61 |
| Temp. Range | 85 Degrees to 120 Degrees F |
| Inlet Temperature (Cold) | 39 Degrees to 80 Degrees F |
| Max. Pressure | 200 psi |
| Inlet Temperature - Maximum Cold | 80 Degrees F |
| Inlet Temperature - Minimum Hot | 120 Degrees F |
| Inlet Connection Type - Cold | Sweat |
| Coefficient of Volume (Cv) | 1.8 |
| Operating Temperature - Minimum Outlet | 85 Degrees F |
| Operating Temperature - Maximum Outlet | 120 Degrees F |
| Inlet Connection Type - Hot | Sweat |
| Inlet Temperature - Minimum Cold | 39 Degrees F |
| Outlet Connection Type | Sweat |
| For Media | Hot Water, Water |
| Operating Pressure - Maximum | 200 psi |
| Inlet Temperature - Maximum Hot | 180 Degrees F |
| Valve Type | Thermostatic |
Description

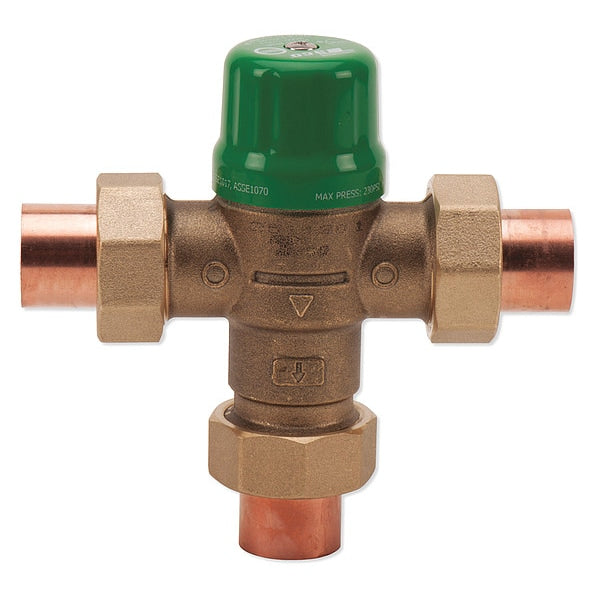

The Taco 5123-C2 is a thermostatic mixing valve made of forged brass. This type of valve blends hot and cold water to maintain a set outlet temperature, operating with a flow rate of 1 to 14 gpm and featuring 3/4-inch union sweat connections.
