- Amps AC: 800 mA
- Voltage: 120 V AC
- Frequency: 50/60 Hz
- Maximum Operating Temperature: 175 Degrees F
- Minimum Operating Temperature: -40 Degrees F
- Input Voltage: 120V AC
Specifications
| Part Number | 50D50U-843 |
| Brand | Copeland Comfort Control |
| Electrical Ratings | 24 V AC |
| Includes | Boilers, Cooking and Laundry Equipment, Gas Furnaces, Infrared and Tube Heaters, Unit Heaters, Water Heaters |
| Gas Type | NG/LP |
| Product Type | Ignition Module |
| Electrical Connections | 3/16 in Quick Connect |
| Lead Length | 5 1/2 in |
| Amps AC | 800 mA |
| Control Volts | 24 V AC |
| Voltage | 120 V AC |
| Bracket | Universal |
| Igniter Warm-Up Time (Sec.) | 90 sec |
| Type | Intermittent Pilot Ignition |
| Standards | UL Listed |
| Item | Ignition Module |
| Retries | 1, 2, 3, Continuous |
| For Use With | Residential and Commercial Heating Equipment |
| Frequency | 50/60 Hz |
| OEM Replacement Part Number | See full list of OEM Replacement Part Number 00-354447-00001,00-857207-00001,00-857207-00002,025-27662-000,025-27662-700,025-29012-001,025-29012-002,025-29012-003,025-29012-004,025-42681-000,031-01283-000,03546,05-162425-103,05-162425-200,05-162426-000,05-162426-001,05-162426-002,05-162426-003,05-162426-005,05-162426-006,05-162426-007,05-162426-053,05-162426-101,05-162426-105,05-162426-200,05-162426-201,05-162426-203,05-162426-207,05-162526-005,05-169001-000,05-169001-001,05-169001-002,05-169001-003,05-169002-003,05-169003-103,05-169005-123,05-169006-201,05-169007-201,05-169008-225,05-169009-005,05-169009-023,05-169010-023,05-169011-201,05-169011-205,05-169012-200,05-169015-705,05-169018-003,05-203025-005,05-203026-005,05-272426-005,05-272426-055,05-272426-253,05-279000-023,05-279001-223,05-279002-223,05-279003-223,05-279004-201,05-279004-223,05-279005-223,05-296423-150,05-296423-151,05-296423-750,05-296423-751,05-296425-153,05-296425-250,05-296425-755,05-296426-150,05-296426-151,05-296426-153 |
| Maximum Input Current | 800 mA |
| Lock Out Time | 5 min |
| Application | Boilers, Ovens, LP/Natural Gas Furnaces, Infrared and Tube Heaters, Laundry, Unit Heaters, Water Heaters |
| Replacement Type | OEM |
| Maximum Operating Temperature | 175 Degrees F |
| Flame Sensor Current Output | 0.5 uA |
| Thermostat Anticipator Setting | Thermostat Anticipator |
| Igniter Warm Up Time | 90 sec |
| Automatic Reset Time | 1 hr |
| Number of Retries | 1 |
| Minimum Operating Temperature | -40 Degrees F |
| Pilot Valve Current Output | 2 A |
| Input Voltage | 120V AC |
| Electrical Connection Type | 3/16 in Quick-Connect |
| Compatible with Brand | See full list of Compatible with Brand AAON,ADC,Bakers Pride,Baso,Beckett,BKI,Blodgett,Bradford White,Camstat,Capable,Carrier,Cleveland,Crown Stream,Dexter,Duke,Fenwal,Frymaster,Garland,Goodman,Groen,Henny Penny,Hobart,Honeywell,ICM,Johnson Controls,Laars,Lennox,Lincoln,Lochinvar,Midco,Middleby,Modine,Picard,Pitco,Resideo,Reznor,Rheem,Roberts Gordon,Robertshaw,Snyder,Space Ray,Sunstar,Superior Radiant,Trane,UTEC,Utica-Dunkirk,Vulcan Hart,Weil McLain,White-Rodgers,York |
| Low Voltage Protection | Low Voltage Protected |
| Board Type | Non-Integrated Board |
| Pre-Purge Time | 45 sec |
| Control Voltage | 24V AC |
| Main Valve Current Output | 4 A |
| Ignition Cycle Time | 90 seconds (IP), 0 seconds (pre-purge), 0 seconds (inter-purge) 4 seconds (DS), 30 seconds (pre-purge), 30 seconds (inter-purge) |
| For Fuel Type | LP, Natural Gas |
Description

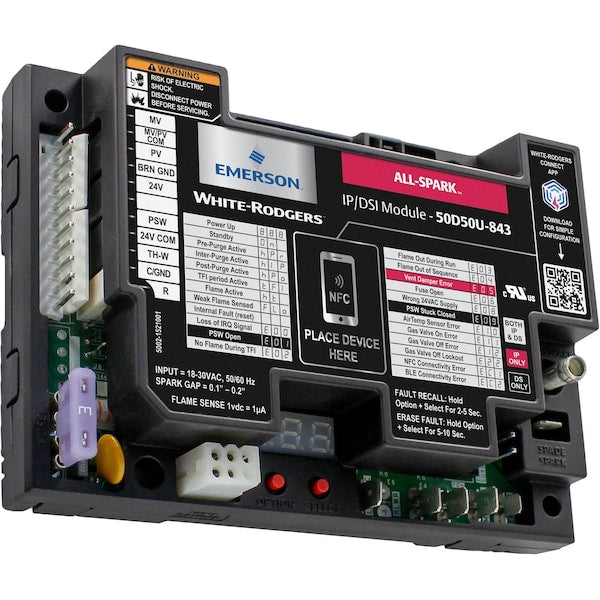

The Copeland Comfort Control 50D50U-843 is an intermittent pilot ignition module for gas-fired equipment. It provides a spark to ignite the pilot, operating on 24 V AC with a pre-purge cycle. This universal module is compatible with natural gas (NG) and liquid propane (LP) systems, and is used in boilers, cooking and laundry equipment, gas furnaces, infrared and tube heaters, unit heaters, and water heaters.
