- Voltage: 24V AC
- Max. Water Temp. (Deg. F): 125 Degrees F
- NEMA Rating: Not Rated
- Control Signal: On/Off
- Operating Temperature - Maximum: 125 Degrees F
- Frequency: 50/60 Hz
Specifications
| Part Number | 40003916-027 |
| Brand | Honeywell |
| Voltage | 24V AC |
| For Use With | V8043B Zone Valves |
| Depth | 3 1/2 in |
| Width | 2 3/8 in |
| Height | 1 1/2 in |
| Overall Depth | 3 1/2 in |
| Overall Width | 2 3/8 in |
| Electrical Lead Length | 18 in |
| Overall Height | 1 1/2 in |
| Stroke Length | Not Rated |
| Item | Electric Zone Valve Actuator |
| Electrical Connections | 18 in Leads |
| Type | 50/60 Hz |
| Max. Water Temp. (Deg. F) | 125 Degrees F |
| NEMA Rating | Not Rated |
| Product Type | Electric Zone Valve Actuator |
| Cycle Time | Not Rated |
| Compatible Series | V8043B |
| Control Signal | On/Off |
| Operating Temperature - Maximum | 125 Degrees F |
| Return Action | Spring Return |
| Electrical Connection Type | Hardwired |
| Number of Auxiliary Switches | 1 |
| Compatible Valve Action | Normally Open |
| Includes Electrical Leads | Electrical Leads Included |
| Frequency | 50/60 Hz |
| Compatible Valve Body Pattern | Two-Way |
| Torque | Not Rated |
Description

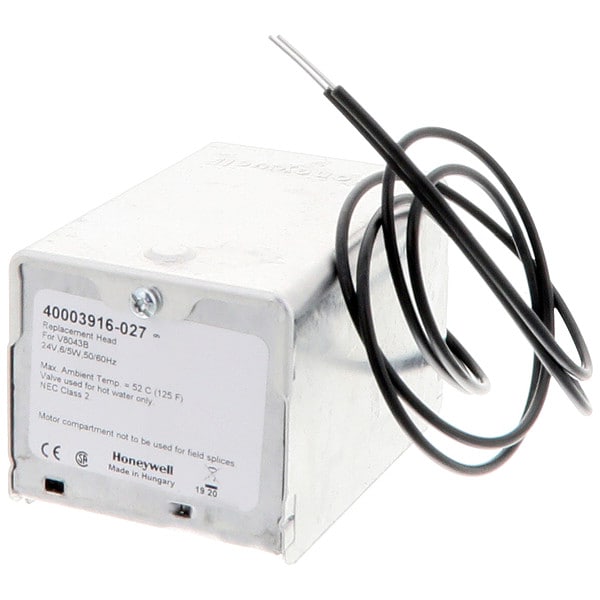

The Honeywell 40003916-027 is an electric zone valve actuator, functioning as a replacement powerhead for V8043B zone valves. This 24V AC actuator operates at 50/60 Hz and is rated for a maximum water temperature of 125 degrees Fahrenheit, with 18-inch electrical leads.
