- Coil Voltage: 110V-120V AC
- Frame Size: S2
- Mounting Hole Diameter: 0.2 in
- HP @ 3 Phase - 575V: 50 hp
- Enclosure NEMA Rating: No Enclosure
- Horsepower @ Three Phase - 240V AC: 15 hp
Specifications

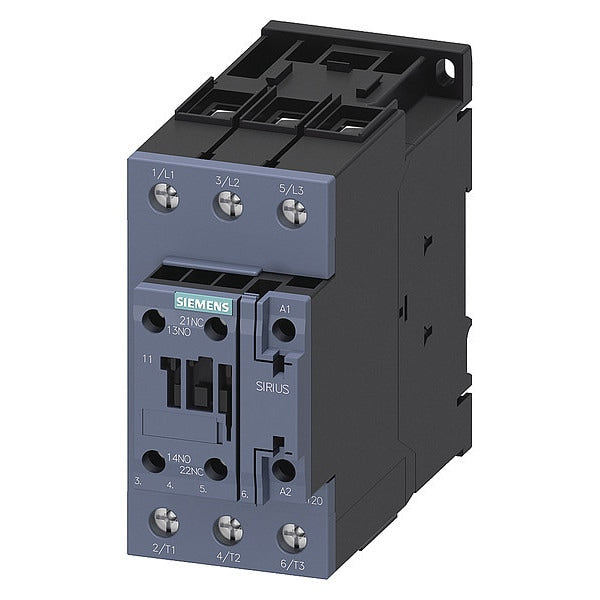

| Part Number | 3RT2036-1AK60 |
| Brand | Siemens |
| Auxiliary Contact Form | 1NC/1NO |
| Coil Voltage | 110V-120V AC |
| Number of Poles | 3 |
| Reversing Capability | Non-Reversing |
| Terminal Connection Type | Screw |
| Overall Height | 5.65 in |
| Mounting Hole Distance - Height | 3.84 in |
| Frame Size | S2 |
| Mounting Hole Diameter | 0.2 in |
| Overall Depth | 4.5 in |
| Overall Width | 2.5 in |
| Mounting Hole Distance - Width | 1.77 in |
| Item | IEC Magnetic Contactor |
| Number of Auxillary Contacts | 2 |
| Standards | REACH Art 33, WEEE (2012/19/EU) |
| Frame / Series / Class / Code | S2 |
| Reversing | No |
| HP @ 3 Phase - 575V | 50 hp |
| Enclosure NEMA Rating | No Enclosure |
| Series | SIRIUS 3RT20 |
| IP Rating | IP20 |
| Max. Operating Watts | 22 kW (at 400V, AC-3), 46 kW (at 400V, AC-1) |
| Watts Loss | 4W (Current Dependent); 18.5W (Current Independent) |
| Horsepower @ Three Phase - 240V AC | 15 hp |
| Phase | Three |
| Horsepower @ Single Phase - 240V AC | 10 hp |
| Mechanical Operating Durability | 10,000,000 |
| Response Time | 10 to 18 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 x Us1), 10 to 18 msec (AC Operation Opening Delay Operating Times for 1.0 x Us1), 10 to 80 msec (AC Operation Closing Delay Operating Times for 0.8 ... 1.1 x Us1), 12 to 22 msec (AC Operation Closing Delay Operating Times for 1.0 x Us1) |
| Full Load Current - Inductive | 52 A |
| Minimum Operating Temperature | -13 Degrees F |
| Horsepower @ Three Phase - 208V AC | 15 hp |
| Full Load Current - Resistive | 70 A |
| Mounting Style | DIN Rail, Surface |
| Mounting Postion | Vertical |
| Embedded Surge Suppressor | No |
| Horsepower @ Single Phase - 120V AC | 3 hp |
| Contactor Style | IEC |
| Frequency | 50/60 Hz |
| NEMA Enclosure Rating | No Enclosure |
| Maximum Operating Temperature | 140 Degrees F |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Three Phase - 480V AC | 40 hp |
| Number of Normally Open Main Contacts | 3 |
| Maximum Voltage Rating | 690V AC |
| Horsepower @ Three Phase - 600V AC | 50 hp |
Description
The Siemens 3RT2036-1AK60 is an IEC magnetic contactor from the S2 frame series. This contactor uses an electromagnetic coil to open and close power circuits, and it is a non-reversing, three-pole device rated at 50 hp at 575V three-phase with a 110V-120V AC coil. It includes one normally open and one normally closed auxiliary contact, uses screw terminals, and is supplied without an enclosure.
