- Coil Voltage: 110V-127V AC/DC
- Mounting Hole Diameter: 0.36 in
- Frame Size: S6
- HP @ 1 Phase - 230V: 30
- HP @ 3 Phase - 575V: 150 hp
- Enclosure NEMA Rating: No Enclosure
Specifications
| Part Number | 3RT1055-6AF36 |
| Brand | Siemens |
| Auxiliary Contact Form | 2NC/2NO |
| Coil Voltage | 110V-127V AC/DC |
| Number of Poles | 3 |
| Reversing Capability | Non-Reversing |
| Terminal Connection Type | Screw |
| Mounting Hole Diameter | 0.36 in |
| Overall Depth | 6.69 in |
| Mounting Hole Distance - Width | 3.94 in |
| Overall Height | 6.77 in |
| Overall Width | 0.47 in |
| Frame Size | S6 |
| Mounting Hole Distance - Height | 5.12 in |
| Item | IEC Magnetic Contactor |
| Number of Auxillary Contacts | 4 |
| Standards | REACH Art 33, WEEE (2012/19/EU) |
| HP @ 1 Phase - 230V | 30 |
| HP @ 3 Phase - 575V | 150 hp |
| Frame / Series / Class / Code | S6 |
| Enclosure NEMA Rating | No Enclosure |
| Reversing | No |
| Series | SIRIUS 3RT10 |
| Max. Operating Watts | 75 kW (at 400V, AC-4), 75 kW (at 400V, AC-3), 105 kW (at 400V, AC-1) |
| Watts Loss | 9W (Current Dependent); 5.2W (Current Independent) |
| NEMA Enclosure Rating | No Enclosure |
| Contactor Style | IEC |
| Full Load Current - Inductive | 150 A |
| Embedded Surge Suppressor | No |
| Full Load Current - Resistive | 185 A |
| Response Time | 100 to 120 msec (Closing Time - at Us min ... Us Max), 80 to 90 msec (Opening Time - at 0.8 × Us min ... 1.1 × Us Max), 80 to 90 msec (Opening Time - at Us min ... Us Max), 95 to 135 msec (Closing Time - at 0.8 × Us min ... 1.1 × Us Max) |
| Horsepower @ Three Phase - 240V AC | 60 hp |
| Mechanical Operating Durability | 10,000,000 |
| Mounting Style | Surface |
| Horsepower @ Single Phase - 240V AC | 30 hp |
| Phase | Three |
| Horsepower @ Three Phase - 600V AC | 150 hp |
| Horsepower @ Three Phase - 208V AC | 50 hp |
| Horsepower @ Three Phase - 480V AC | 125 hp |
| Number of Normally Open Main Contacts | 3 |
| Mounting Postion | Vertical |
| Maximum Voltage Rating | 1000V AC |
| Minimum Operating Temperature | -13 Degrees F |
| Includes Auxiliary Contacts | Yes |
| Frequency | 50/60 Hz |
Description

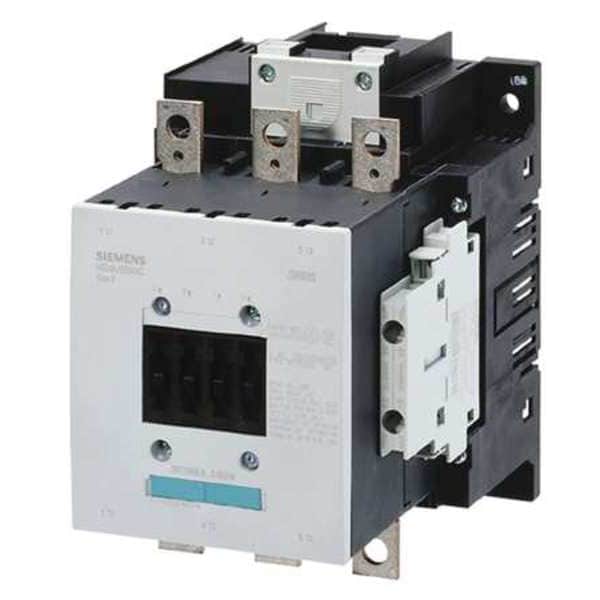

The Siemens 3RT1055-6AF36 is an IEC magnetic contactor with 2NC/2NO auxiliary contacts. This non-reversing, three-pole contactor switches power to a load when its 110V-127V AC/DC coil is energized, using screw terminals for wiring. It is rated for 30 HP at 230V single-phase and 150 HP at 575V three-phase, and complies with REACH Art 33 and WEEE (2012/19/EU) standards.
